hdmi-pmod

Description

HDMI type A receptacle to Digilent Pmod™ breakout board.

• Impedance matched & length tuned differential lines
• Includes 3.3V to 5V boost converter (max. 200mA)
• Pinout to match Digilent high-speed Pmod™ e.g. on Arty A7
• Tested with Arty A7 board at 1280x720 @ 60HZ

Contents

File	Description
hdmi-pmod.pdf	Schematic in PDF format
hdmi-pmod.csv	BOM in CSV format

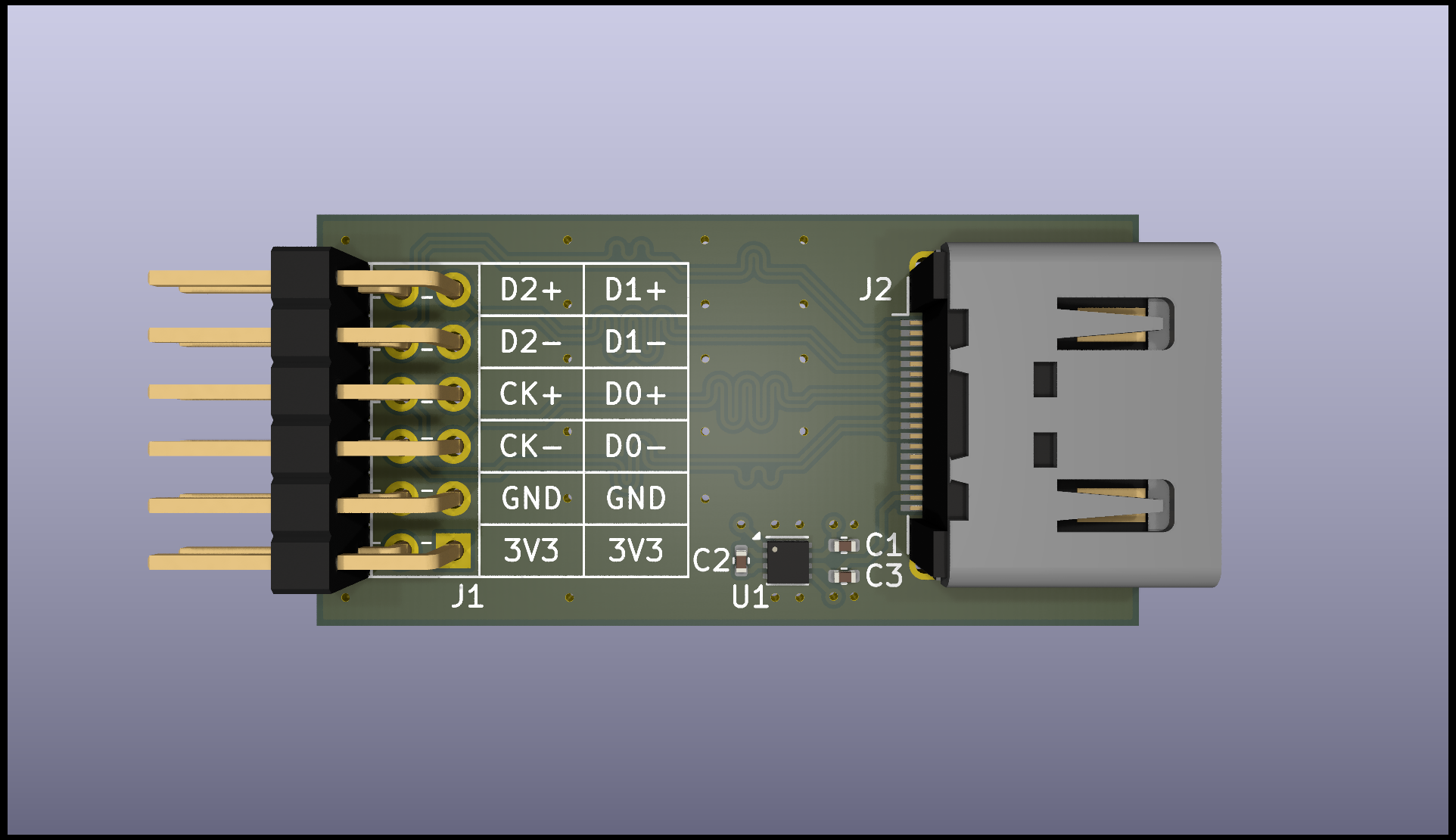

hdmi-pmod.png	PCB 3D render
hdmi-pmod.kicad_pro	KiCad 8.0.2 project
hdmi-pmod.kicad_pcb	KiCad 8.0.2 PCB
hdmi-pmod.kicad_sch	KiCad 8.0.2 schematic

Further Reading

• FPGA display controller with support for VGA, DVI, and HDMI ¹
• Digital Visual Interface Specification Version 1.0 ²
• BML DVI digital video for FPGAs over PMOD ³
• fpga4fun.com HDMI ⁴
• Hackaday.io HDMI PMOD ⁵

Footnotes

1. https://github.com/projf/display_controller ↩

2. https://glenwing.github.io/docs/DVI-1.0.pdf ↩

3. https://blackmesalabs.wordpress.com/2017/12/15/bml-hdmi-video-for-fpgas-over-pmod/ ↩

4. https://www.fpga4fun.com/HDMI.html ↩

5. https://hackaday.io/project/176327-hdmi-pmod ↩
