Description

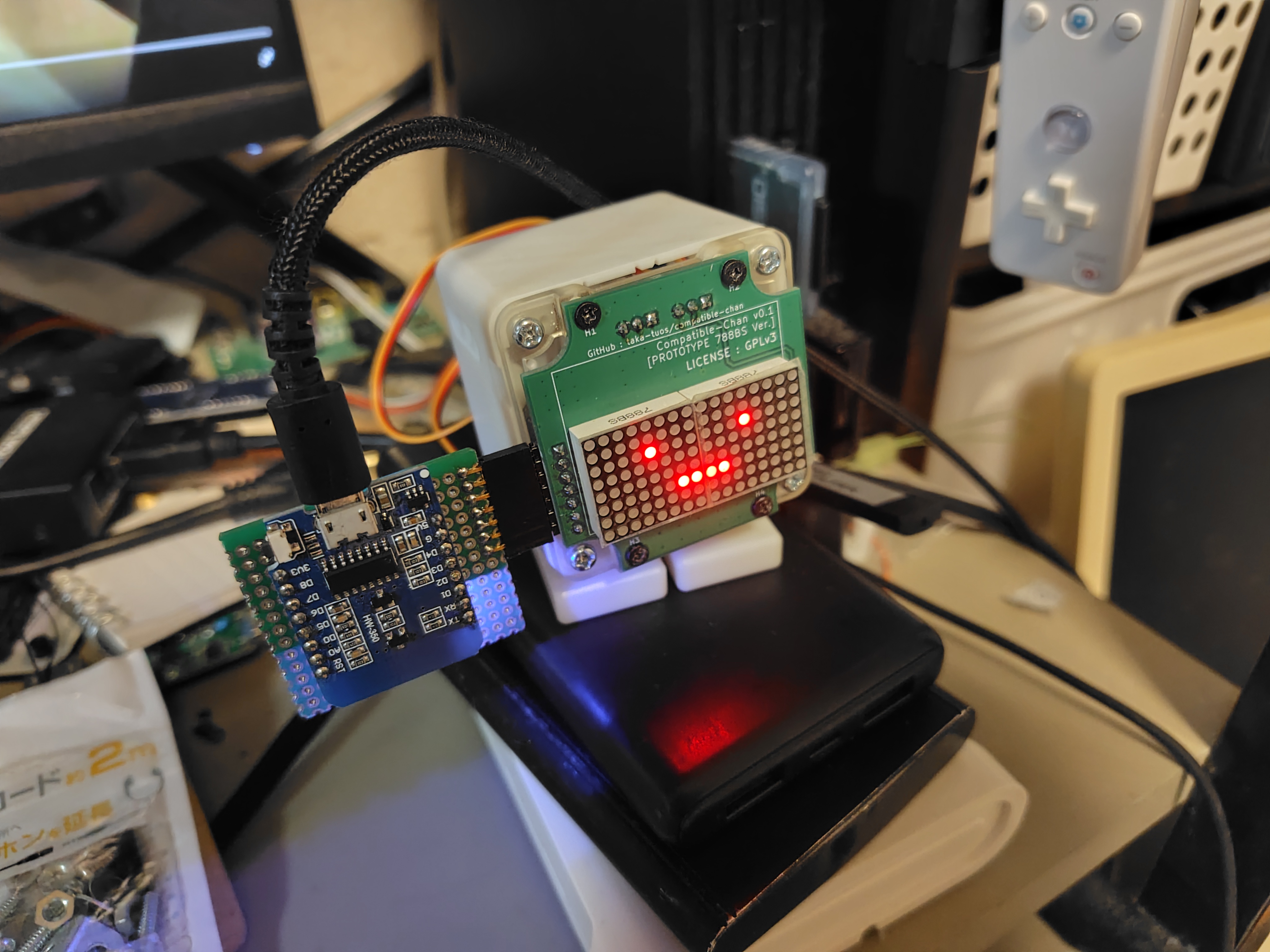

M5Stack compatible module for stack-chan

README

Bunch of 3D shapes for use with kicad my component footprints

Till the time I figure out a way have relative paths work properly for 3D shapes, you'd have to clone this repository somewhere and add a symlink to it (or clone it) in the system wide 3d packages path of your kicad installation (for e.g.: /usr/share/kicad/modules/packages3d on linux).

Models

• Through hole WOM diode bridge
• EL14 decoupling transformer (Made it for 600 Ohm 1:1)
• RJ11 PCB socket, 6P/4C type (623PCB)
• 8x8 single color LED matrix 1.9mm pixel, 20mm module (0788AS, 0788BS etc.)
• 8x8 single color LED matrix 3mm pixel, 32mm module (1088AS, 1088BS etc.)
