diy-am-fm-radio-receiver-with-cxa1019s Schematic SVG view

Imported from GitHub: TeknoTrek/DIY-AM-FM-Radio-Receiver-with-CXA1019S · commit 37a45fe

Description

This repo contains open-source KiCad PCB designs for a DIY AM/FM radio receiver using the Sony CXA1019S IC. Perfect for electronics beginners! 🔹 Key Features: Dual-band (AM+FM) receiver schematic Optimized PCB layout for low noise Ready-to-manufacture Gerber files

README

DIY AM/FM Radio Receiver with Sony CXA1019S - KiCad Project

GitHub stars
YouTube Video

🚀 Build your own high-quality AM/FM radio receiver using the Sony CXA1019S IC! This repository contains the complete KiCad PCB design, schematic, and BOM for a powerful DIY radio project.

🎥 Watch the Full Build Tutorial on YouTube:
👉 Click here to watch the video

📌 Features

✔ Dual-band reception (AM + FM)
✔ Low-noise Sony CXA1019S IC for clear audio
✔ KiCad 6/7 compatible design files
✔ Step-by-step YouTube tutorial (Watch Here)

📁 Files Included

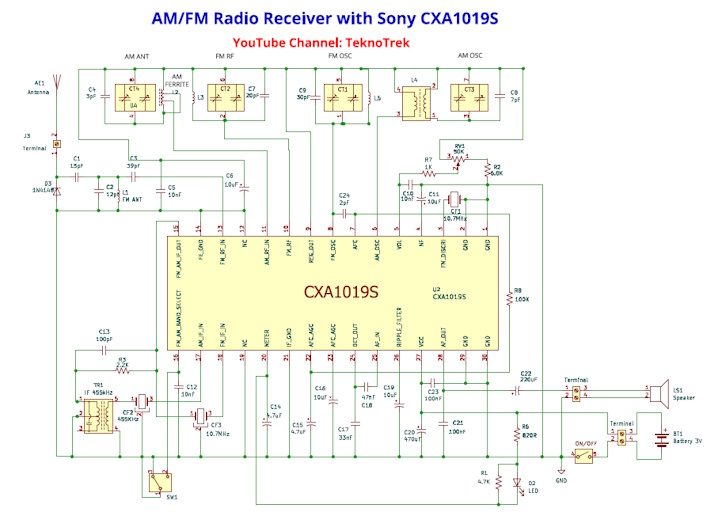

  • 📐 Circuit schematic file (KiCad)
  • 🧩 PCB layout
  • 📸 Images and renders of the circuit
  • 📄 Bill of materials (components list)

📦 Requirements

To complete this project, you’ll need:

  • CXA1019S IC
  • Basic electronic components (resistors, capacitors, etc.)
  • Soldering iron & tools
  • Access to KiCad (Free PCB design software)

🔧 How to Use

  1. Download KiCad (if you don’t have it): kicad.org
  2. Clone this repo or download the .zip file.
  3. Open the .kicad_pro file in KiCad to modify the design.
  4. Check the BOM for required components.
  5. Watch the assembly tutorial on YouTube for step-by-step guidance.

📺 Watch the Full Tutorial

YouTube Thumbnail
Learn how to assemble and troubleshoot the circuit in the full video guide on the TeknoTrek channel!

📸 Project Images

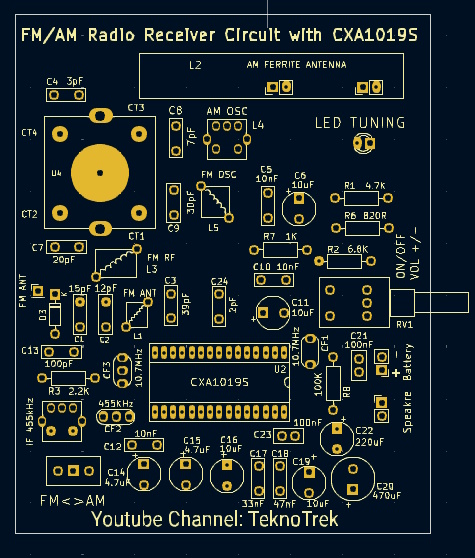

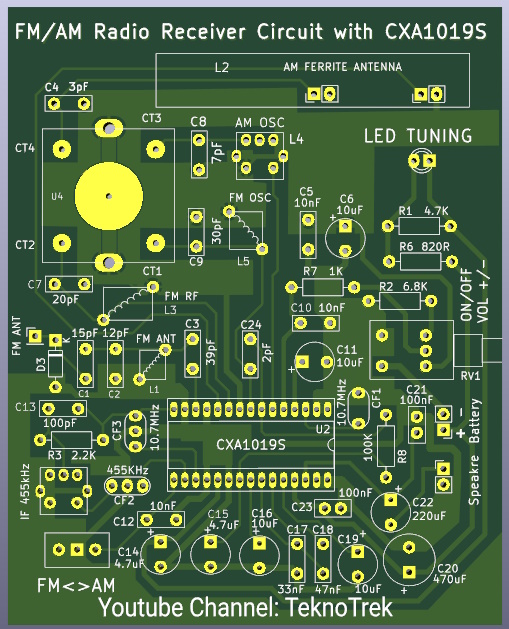

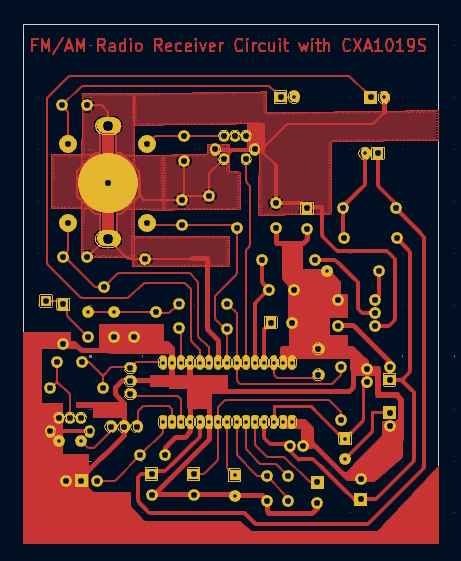

PCB Design 3D Model PCB Layout PCB Layout

💬 Questions or Feedback?

Feel free to open an issue or leave a comment on the YouTube video. I’d love to hear your thoughts and help if you get stuck!

📡 Tags & Keywords (for SEO)

AM radio receiver, FM radio project, Sony CXA1019S, build a radio, DIY electronics, PCB design, KiCad project, radio circuit, home radio, electronics tutorial, radio IC, radio PCB, TeknoTrek, radio receiver project, electronics for beginners

❓ FAQ

Q: Can I modify the PCB for better performance?
A: Yes! The KiCad files are fully editable. Optimize traces or add filters as needed.

Q: Where can I buy the CXA1019S IC?
A: Check AliExpress, eBay, or local electronics stores.

🌟 Support the Project

  • Give a ⭐ on GitHub if you find this useful!
  • Subscribe to TeknoTrek on YouTube for more DIY electronics projects.
  • Share your build in the Discussions section!

📢 Disclaimer: This is an open-source project. Use at your own risk.
