Thingler ESP32 Programmer

README

Thingler ESP32 Programmer

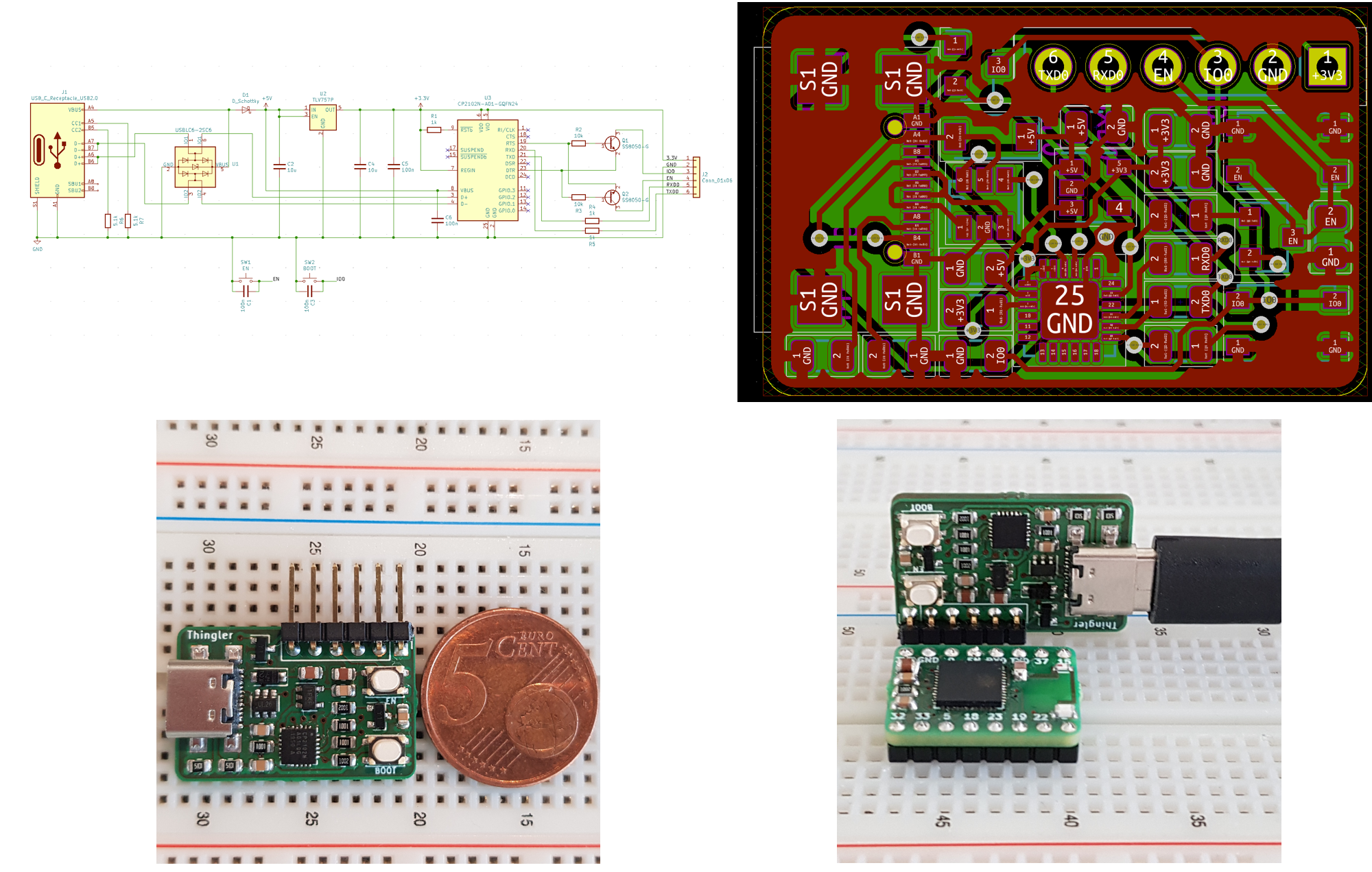

Thingler ESP32 Programmer is a USB Type-C to UART ESP32 programmer. The programmer is based on the CP2102N chip with two tactile buttons, BOOT and EN. The programmer can also be used to power the ESP32 (3.3V) chip and read log data sent from the ESP32 chip.

Thingler ESP32 Programmer has been designed for the Thingler ESP32-PICO-D4 Module but can be used to program any ESP32 chip.

Thingler ESP32 Programmer schematics and PCB has been designed with KiCad.

Getting started

Requirements

• Follow Espressif Systems Getting started instructions

• Silicon Labs drivers in case the programmer is not recognized by the computer

• KiCad for the schematics

Build

The PCB wihout components can be ordered from Aisler or the PCB can be ordered from any fabrication houses by providing the gerber files.

The following components has been used for the programmer:

Ref	Qty	Manufacturer Part Number	Manufacturer	Description	Product Link
J1	1	USB4110-GF-A	GCT	CONN USB 2.0 TYPE-C R/A SMT	Digi-Key
J2	1	61300611021	Wurth Elektronik	Headers & Wire Housings WR-PHD 2.54mm Hdr 6P Single RA Gold	Mouser
U1	1	USBLC6-2SC6	STMicroelectronics	ESD Protection Low Cap	Mouser
U2	1	TLV75733PDBVR	Texas Instruments	LDO Voltage Regulators 1-A	Mouser
U3	1	CP2102N-A02-GQFN24	Silicon Labs	USB Interface IC USB to UART bridge	Mouser
SW1, SW2	2	PTS815 SJK 250 SMTR LFS	C&K	Tactile Switch	Digi-Key
Q1, Q2	2	SS8050-G	Comchip Technology	Bipolar NPN Transistors	Mouser
D1	1	RB161MM-20TR	ROHM Semiconductor	Schottky Diode	Mouser
R1, R4, R5	3	RC0805FR-071KL	Yageo	1 k ohm 1% 1/8W 0805	Digi-Key
R2, R3	2	CRCW080510K0FKEAC	Vishay / Dale	10 k ohm 1% 1/8W 0805	Mouser
R6, R7	2	CRG0805F5K1	TE Connectivity Passive Product	5.1 k ohm 1% 1/8W 0805	Digi-Key
C1, C3, C5, C6	4	885012207098	Wurth Elektronik	100 nF 10% 0805 50V	Mouser
C2, C4	2	CGA4J1X7R0J106K125AC	TDK	10 uF 10% 0805 6.3V	Mouser

License

Released under GNU/GPL Version 3
