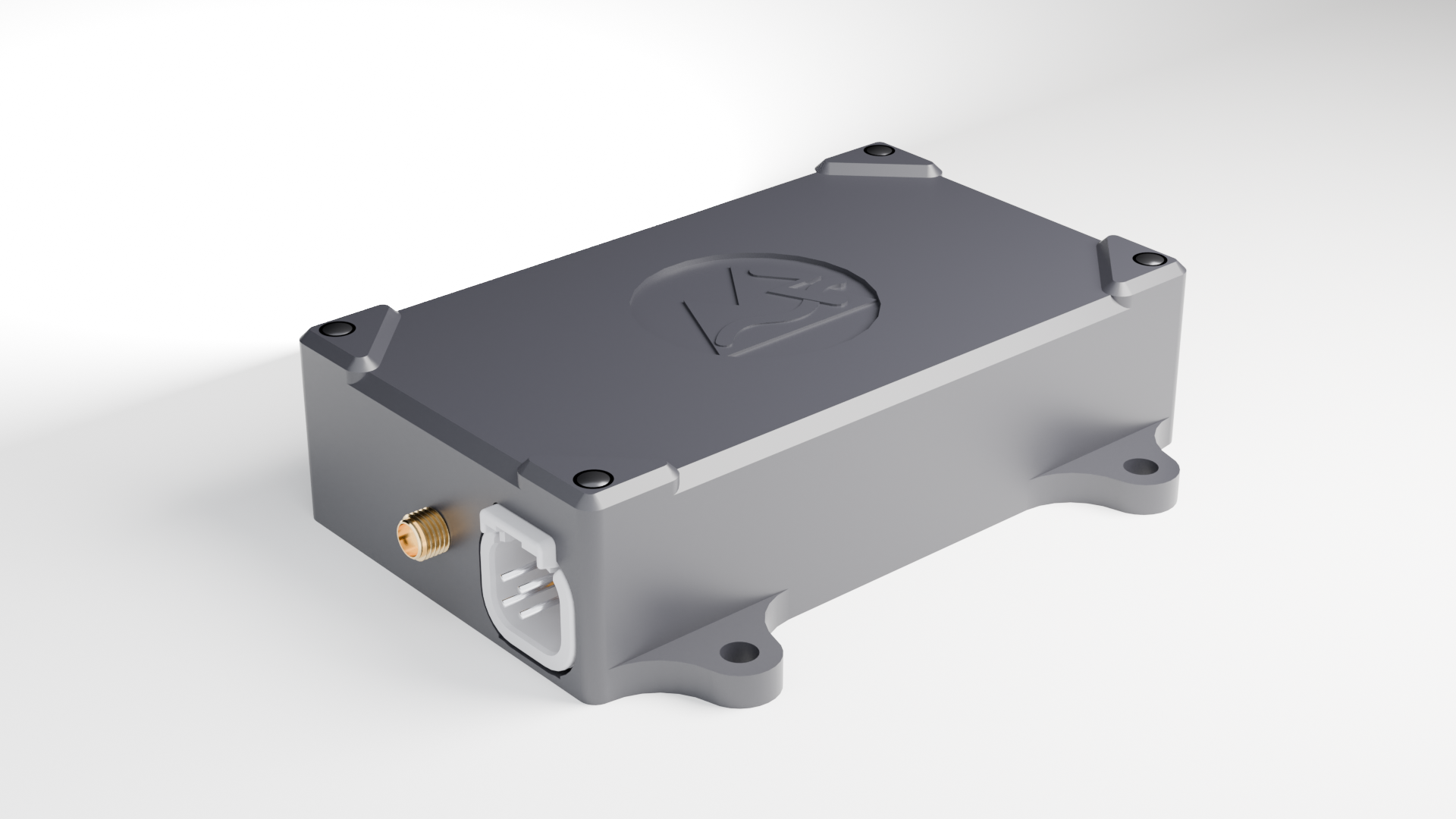

TrailCurrent Bearing

GNSS (Global Navigation Satellite System) module for precise positioning, timing, and navigation. Part of the TrailCurrent open-source vehicle platform.

Project Overview

TrailCurrent Bearing is a standalone GNSS module that reads data from a DFRobot Gravity GNSS receiver via I2C and distributes it over the CAN bus for other modules to consume.

Example Use Cases:

Digital clocks with precise time synchronization
Navigation and geolocation devices
Geospatial macros that control devices based on pinned locations
Vehicle tracking and positioning systems

Hardware Overview

Microcontroller: ESP32-S3 (Waveshare ESP32-S3-RS485-CAN board)
GNSS Receiver: DFRobot Gravity GNSS (I2C, multi-constellation)
CAN Bus: 500 kbps via TWAI driver (GPIO 15 TX, GPIO 16 RX)
I2C: GPIO 1 SDA, GPIO 2 SCL
Flash: 4 MB with dual OTA partitions

Components

DFRobot Gravity GNSS module (GPS + BeiDou + GLONASS)
Waveshare ESP32-S3-RS485-CAN module
JST XH connectors for power and signal distribution

KiCAD Library Dependencies

This project uses the consolidated TrailCurrentKiCADLibraries.

Setup:

# Clone the library
git clone [email protected]:trailcurrentoss/TrailCurrentKiCADLibraries.git

# Set environment variables (add to ~/.bashrc or ~/.zshrc)
export TRAILCURRENT_SYMBOL_DIR="/path/to/TrailCurrentKiCADLibraries/symbols"
export TRAILCURRENT_FOOTPRINT_DIR="/path/to/TrailCurrentKiCADLibraries/footprints"
export TRAILCURRENT_3DMODEL_DIR="/path/to/TrailCurrentKiCADLibraries/3d_models"

See KICAD_ENVIRONMENT_SETUP.md for detailed setup instructions.

Firmware

Built with ESP-IDF (v5.5.x). Pure C, no Arduino framework.

Prerequisites

# Install ESP-IDF (one-time setup)
# See https://docs.espressif.com/projects/esp-idf/en/stable/esp32/get-started/

# Source the ESP-IDF environment
source ~/esp/v5.5.2/esp-idf/export.sh

Build and Flash

idf.py set-target esp32s3
idf.py build
idf.py -p /dev/ttyACM0 flash monitor

Release Binaries

The firmware produces two binary types for different deployment methods:

Binary	Purpose	How it's used
`bearing.bin`	App-only image	OTA updates via Headwaters (`esp_ota_write` validates the app header)
`bearing_merged.bin`	Full flash image (bootloader + partition table + OTA data + app)	Web flasher (writes entire flash at offset 0x0)

After building, run the merge script to create both:

idf.py build
./merge.sh

Attach both files to each GitHub release. The merged binary cannot be used for OTA — esp_ota_end() validates an app image header, and the merged binary starts with the bootloader, which would fail validation.

OTA Firmware Update

Firmware can be updated over-the-air via the CAN bus trigger protocol:

Send CAN ID 0x00 with the target device's last 3 MAC bytes
The device joins WiFi (credentials must be provisioned first) and starts an HTTP server
Upload the app-only firmware binary:

curl -X POST http://esp32-XXYYZZ.local/ota --data-binary @build/bearing.bin

The device writes to the inactive OTA partition and reboots with the new firmware. If the upload fails or times out (3 minutes), the device returns to normal operation.

mDNS Self-Discovery

When CAN ID 0x02 is broadcast (typically by the Headwaters controller), all modules with WiFi credentials join the network and advertise themselves via mDNS:

Service: _trailcurrent._tcp
TXT Records:
- type=bearing — module type
- canid=0x06 — primary CAN status message ID
- fw=<version> — firmware version

The Headwaters controller queries mDNS to discover all online modules, then confirms each via GET /discovery/confirm. Modules disconnect from WiFi and return to CAN-only operation after confirmation or a 3-minute timeout.

CAN Bus Protocol

All messages use standard (11-bit) identifiers at 500 kbps.

Graceful Node Management

The CAN bus uses a TX_ACTIVE / TX_PROBING state machine that allows nodes to enter and leave the bus without impacting other nodes:

TX_ACTIVE: Normal operation at 30 Hz. If 3 consecutive TX failures occur (no ACK from peers), transitions to TX_PROBING.
TX_PROBING: Sends a single status message every 2 seconds. When a peer ACKs a transmission or incoming RX data is detected, transitions back to TX_ACTIVE.

This means unplugging a module causes it to gracefully back off, and plugging it back in resumes full-rate communication automatically with zero configuration.

TX Messages (GNSS Data)

ID	Name	DLC	Format
`0x06`	DateTime	7	`[year_H, year_L, month, day, hour, minute, second]`
`0x07`	SatSpeedCourse	6	`[satellites, speed_H, speed_L, course_H, course_L, gnss_mode]`
`0x08`	Altitude	4	`[alt_3, alt_2, alt_1, alt_0]` — altitude in meters * 100
`0x09`	LatLon	8	`[lat_sign, lat_2, lat_1, lat_0, lon_sign, lon_2, lon_1, lon_0]` — degrees * 10000

Encoding details:

Speed: knots * 100 (uint16, big-endian)
Course: degrees * 10 (uint16, big-endian, rounded)
Altitude: meters * 100 (uint32, big-endian)
Lat/Lon: sign byte (0=positive, 1=negative) + 24-bit scaled value (degrees * 10000)

RX Messages (Control)

ID	Name	Purpose
`0x00`	OTA Trigger	`[mac0, mac1, mac2]` — target device by last 3 MAC bytes
`0x01`	WiFi Config	Chunked credential provisioning (see below)
`0x02`	Discovery	Broadcast trigger for mDNS self-discovery
`0x04`	Version Report	Sent on boot: `[mac3, mac4, mac5, major, minor, patch]` — reports running firmware version to Headwaters

WiFi Credential Provisioning (CAN ID 0x01)

WiFi credentials are sent in 6-byte chunks over CAN:

Start: [0x01, ssid_len, pass_len, ssid_chunks, pass_chunks]
SSID chunks: [0x02, chunk_index, byte0..byte5]
Password chunks: [0x03, chunk_index, byte0..byte5]
End: [0x04, xor_checksum]

Each chunk carries up to 6 bytes. A 5-second timeout resets reception if a chunk is missed.

GNSS Modes

The DFRobot Gravity receiver supports multiple satellite constellation configurations:

Mode	Constellations
1	GPS only
2	BeiDou only
3	GPS + BeiDou
4	GLONASS only
5	GPS + GLONASS
6	BeiDou + GLONASS
7	GPS + BeiDou + GLONASS (default)

Project Structure

main/                       # ESP-IDF firmware
├── main.c                  # GNSS polling, CAN TX/RX with state machine
├── gnss.h / gnss.c         # DFRobot GNSS I2C driver
├── ota.h / ota.c           # OTA updates & WiFi provisioning
├── discovery.h / discovery.c  # mDNS auto-discovery
├── CMakeLists.txt          # Build config
└── idf_component.yml       # Managed dependencies (mdns)

EDA/                        # KiCAD hardware design
├── trailcurrent-gps-module.kicad_pro
├── trailcurrent-gps-module.kicad_sch  # Root schematic (5 sheets)
├── trailcurrent-gps-module.kicad_pcb
├── mcu.kicad_sch           # MCU subsystem
├── power.kicad_sch         # Power management
├── can.kicad_sch           # CAN interface
└── connectivity.kicad_sch  # GNSS interface

CAD/                        # FreeCAD housing / 3D prints
partitions.csv              # Dual OTA partition table
sdkconfig.defaults          # Build defaults

Manufacturing

PCB Files: Ready for fabrication via standard PCB services (JLCPCB, OSH Park, etc.)
BOM Generation: Export BOM from KiCAD schematic (Tools > Generate BOM)
JLCPCB Assembly: See BOM_ASSEMBLY_WORKFLOW.md

License

MIT License - See LICENSE file for details

This is open source hardware. You are free to use, modify, and distribute these designs for personal or commercial purposes.

Contributing

Improvements and contributions are welcome! Please submit issues or pull requests to the main repository.
