Imported from GitHub: Twisted-Fields/rp2040-motor-controller · commit d51dc54

Description

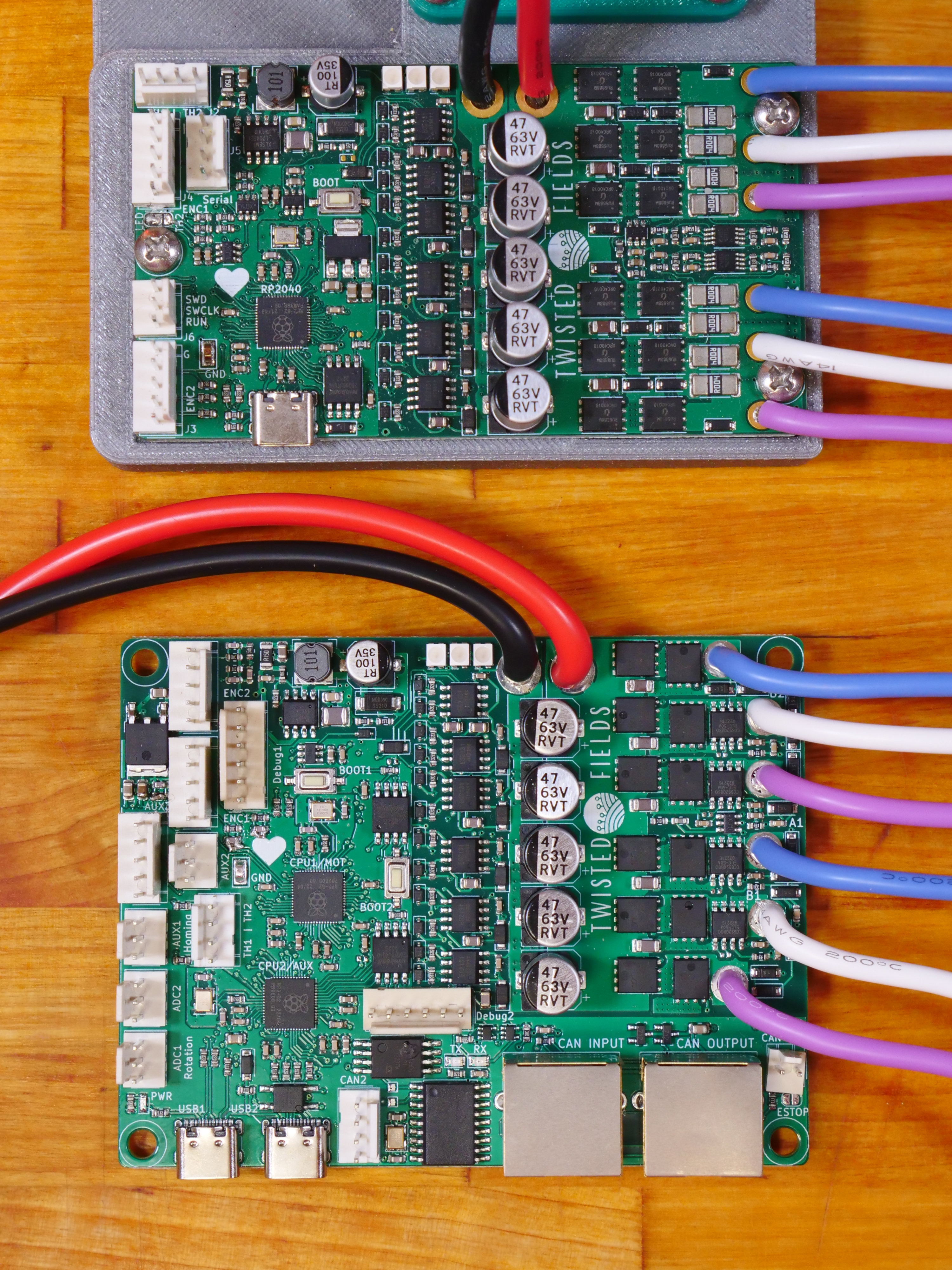

A dual channel brushless motor controller based on the RP2040 microcontroller, designed in Kicad.

publicCERN-OHL-S-2.0

rp2040-motor-controller

@twisted-fields

A dual channel brushless motor controller based on the RP2040 microcontroller, designed in Kicad.

Tags

electronicskicadmotor-controllerpcbresistorinductorcapacitordiodecrystalfuseconnectorIC

Project info

Files3

Source921 KB

Extracted4.5 MB

Source formatKiCad KiCad project format 2

GitHub stars414

Imported fromGitHub

Saves0

Downloads10

UpdatedJul 2, 2026

Downloads

Source packageOriginal hardware design source archive

Original KiCad project zip

921 KB

Fabrication packageManufacturing outputs for the board house

Gerbers and drill zip

730 KB

Review packageSchematics, PCB views, BOM, and extracted files

Schematic PDF

761 KB

Schematic, RP2040_base sheet

8.1 MB

PCB SVG

2.6 MB

BOM CSV

17 KB
