This project involved the end-to-end design and development of a compact, low-power IoT system using the ESP32-C3-02 SoC and integrated TP4056 Li-ion battery charger. The goal was to create a reliable and modular platform for wireless environmental data monitoring, powered by a rechargeable battery with onboard protection and USB-C support.

README

ESP32-C3 Based IoT PCB for Remote Sensing

This repository contains the complete design and documentation for a custom-built IoT PCB developed using the ESP32-C3-02 SoC and TP4056 Li-ion charging IC. Designed for sensor-based remote monitoring applications, the board integrates power management, display, logging, and modular expandability.

---

Key Features

• Microcontroller: ESP32-C3-02 (Wi-Fi + BLE support)
• Power Management: TP4056-based Li-ion charging with USB-C input
• Sensors:
  • BME280 (temperature, humidity, pressure)
  • Light sensor (TEMT6000)
  • Sound sensor (MAX4466)
• Peripherals:
  • I2C OLED display
  • microSD card for data logging
  • Flash memory chip (W25Q32)
• Power Input:
  • USB-C and LiPo battery support
• Form Factor: Compact, <100mm x 100mm
• Expansion: Modular headers for I2C/SPI sensors

---

Folder Structure

ESP32_BASED_PCB-KiCAD/
├── GERBER/                    # Gerber and drill files for fabrication
├── Datasheets/               # Component datasheets (ICs, sensors, etc.)
├── libraries/                # Custom KiCad symbols, footprints, and 3D models
├── PICTURES/                 # Rendered PCB images and design snapshots
├── *.kicad_sch, *.kicad_pcb  # Schematic and PCB layout files
├── _autosave-*               # Backup files (can be ignored)
├── README.md                 # This file
├── .gitignore                # File exclusions

---

Design Highlights

• Clean two-layer PCB layout with optimized signal routing
• Manual resolution of DRC/ERC issues in KiCad
• Verified using DFM rules for manufacturability
• Signal integrity maintained across I2C/SPI
• Modular architecture for ease of debugging and expansion
• Custom footprint creation for several unique parts

---

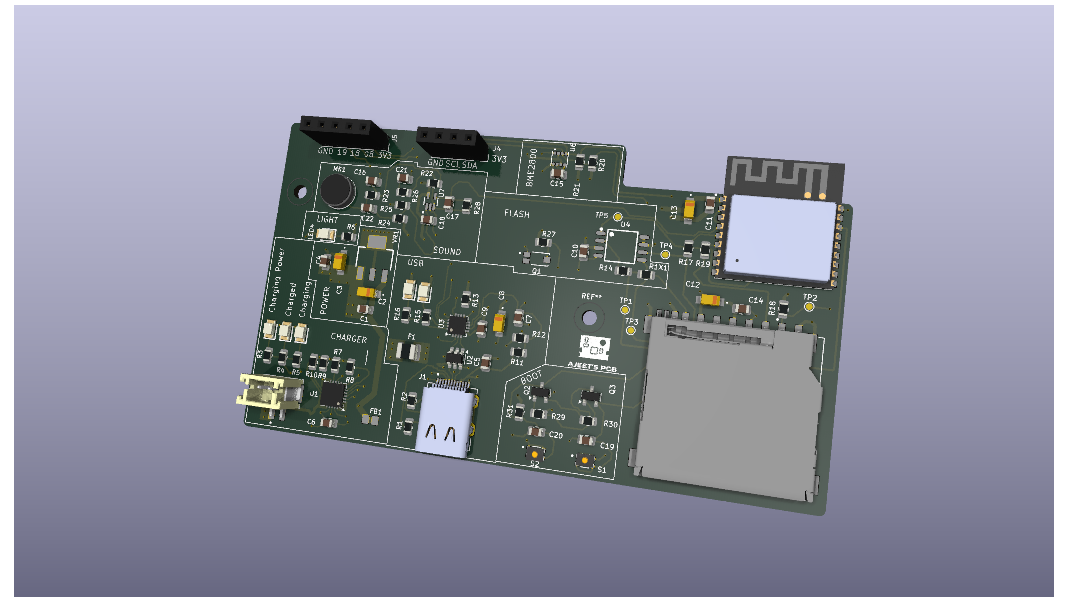

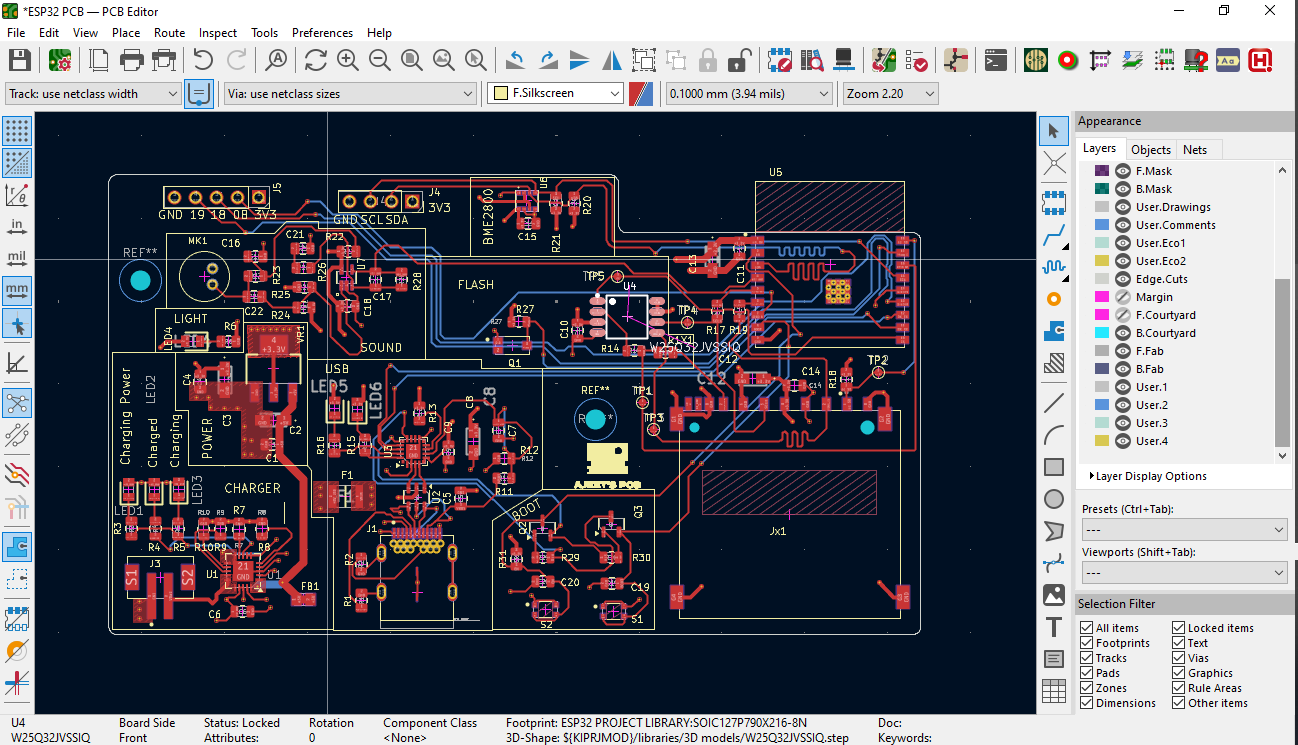

Preview

---

Getting Started

To replicate or adapt this design:

1. Clone this repo:

   git clone https://github.com/BitwiseAjeet/ESP32_BASED_PCB-KiCAD.git


2. Open the KiCad project file:

   • ESP32 PCB.kicad_pro

3. Explore the schematic (.kicad_sch) and layout (.kicad_pcb)

4. Export Gerbers and BOM using KiCad's plot function for manufacturing

---

License

This project is licensed under the MIT License – feel free to use, modify, or contribute.

---
