Documentation and code samples for the PMOD1 - Rotary+RingLED

README

PMOD1 - RingPush module

This repository hosts all data related to PMOD1, a PMOD module with a LED ring and a rotary encoder with push button. Always use the latest version of the PCB.

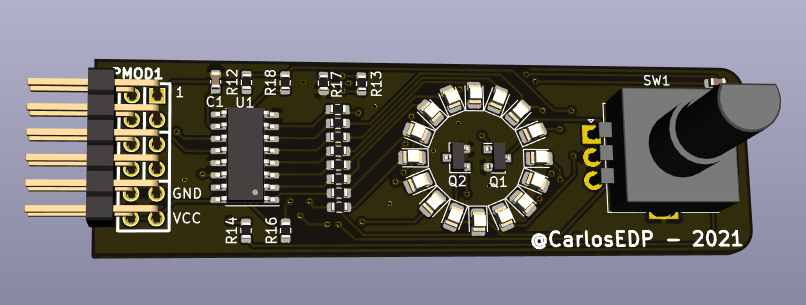

PCB 3D View:

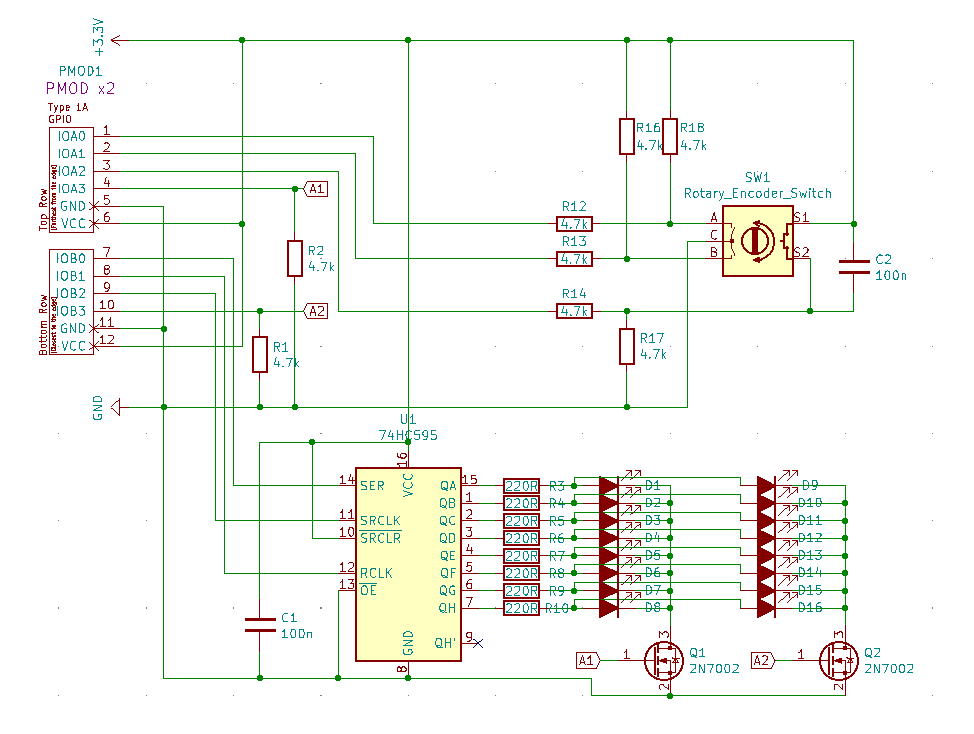

Schematic

BOM

Id	Designator	Package	Quantity	Designation
1	U1	SOIC-16_3.9x9.9mm_P1.27mm	1	74HC595
2	PMOD1	pmod_pin_array_6x2	1	PMOD-Device-x2-Type-1A-GPIO
3	SW1	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	1	Rotary_Encoder_Switch
4	R1,R2,R12,R13,R14,R16,R17,R18	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	8	4.7k
5	C1,C2	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	2	100n
6	D1,D2,D3,D4,D5,D6,D7,D8,D9,D10,D11,D12,D13,D14,D15,D16	LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder	16	LED_ALT
7	R3,R4,R5,R6,R7,R8,R9,R10	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	8	220R
8	Q1,Q2	SOT-23	2	2N7002

The repository has the following data:

• Kicad project with schematic and PCB
• Arduino sample implemented on the NodeMCU board showing the encoder and rindLED functionality
