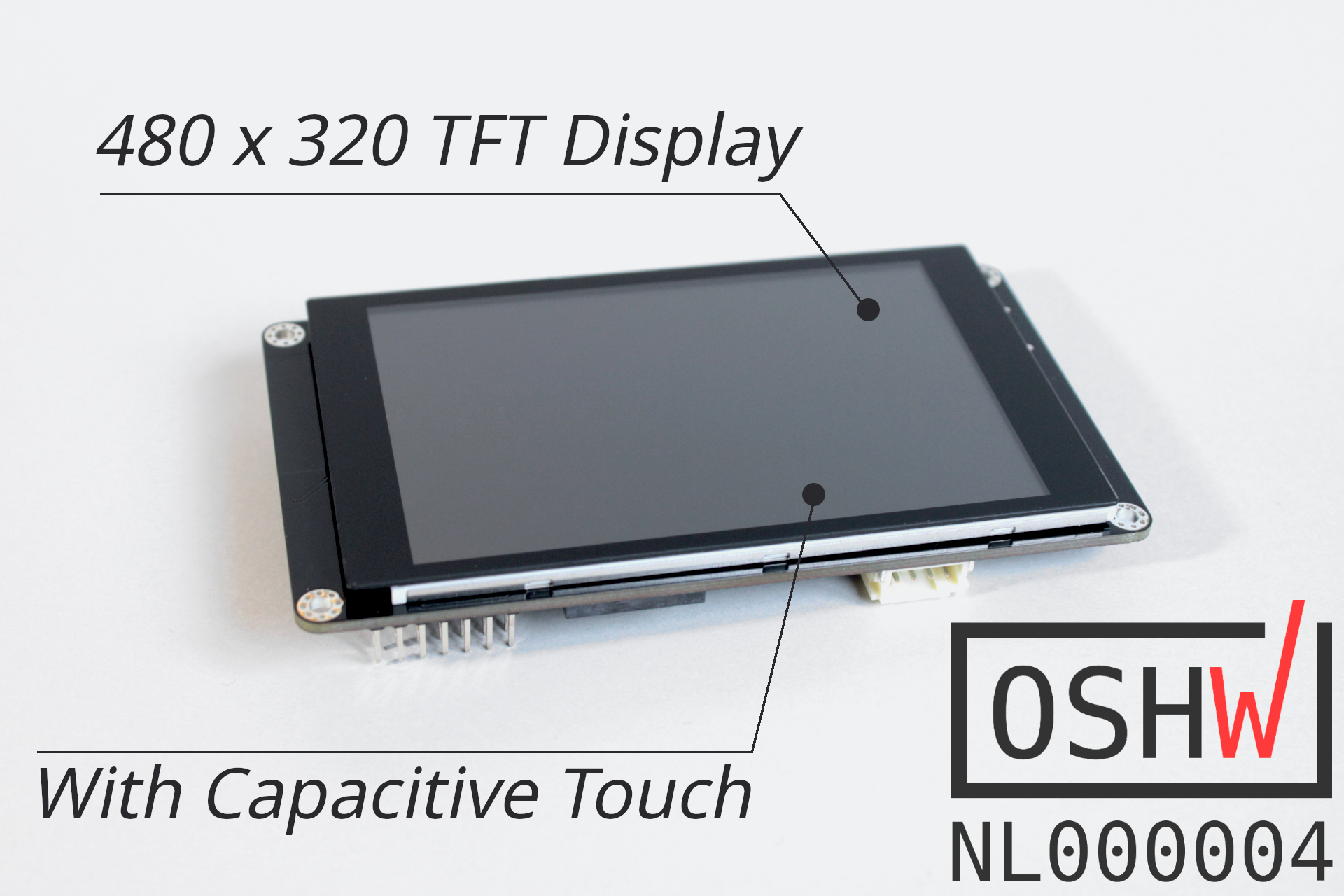

ESP32 TouchDown

README

The Case

The case for the ESP32 TouchDown comes in two parts. The front is the same for every style of case you want. The back comes in four variants; a flush cover, a cover with a battery compartment, a back that has the same wedge style as FreeTouchDeck, and a similar style but at an angle of 30°.

You will also find the .f3z file so you can import the case in Fusion360 and modify it to your liking. The file called "ESP32_TouchDown_Case_with_Grid.f3z" contains the front with a 2*3 grid.

The Front

This part is the same for all. (file: ESP32_TouchDown_Front.stl)

The Flush Back

With four holes for mounting. (file: ESP32_TouchDown_Flush.stl)

The Battery Back

Which comfortably fits a 2000mAh battery. (file: ESP32_TouchDown_Battery.stl)

The FreeTouchDeck-style Back

Like the case for FreeTouchDeck. (file: ESP32_TouchDown_FTD.stl)

The 30° angled FreeTouchDeck-style Back

Like the case for FreeTouchDeck but at an angle of 30°. (file: ESP32_TouchDown_FTD_30.stl)

The Grid Style Front

A front that has a 2*3 grid. (ESP32_TouchDown_Front_Grid.stl)

More cases on Thingiverse

Also check out the cases made by ESP32 TouchDown users: https://www.thingiverse.com/search?q=esp32+touchdown
