CAN-DAQ based on the ESP32-S3 Microcontroller

This project is meant to help visualize messages on a CAN bus, with an affordable and open-source solution. We provide the design and firmware files for an affordable hardware solution (we were able to manufacture it for less than INR 2000).

Key features:

• Support for CAN 2.0 up to 1 Mbps.
• Support for both standard and extended CAN frames.
• Works with a maximum sampling rate of 1 kHz, which is sufficient for many applications.
• USB interface for easy connection to a computer.
• Accepts a standardized CAN database file (DBC) to interpret the messages on the CAN bus.
• Real-time plotting of CAN messages.
• Logging to an SQLite database for later analysis, with the ability to export to CSV.

Usage

Please see the README files in each folder of this repository for detailed instructions on how to use the hardware and software.

Please see the manual for further guidance.

Overall architecture

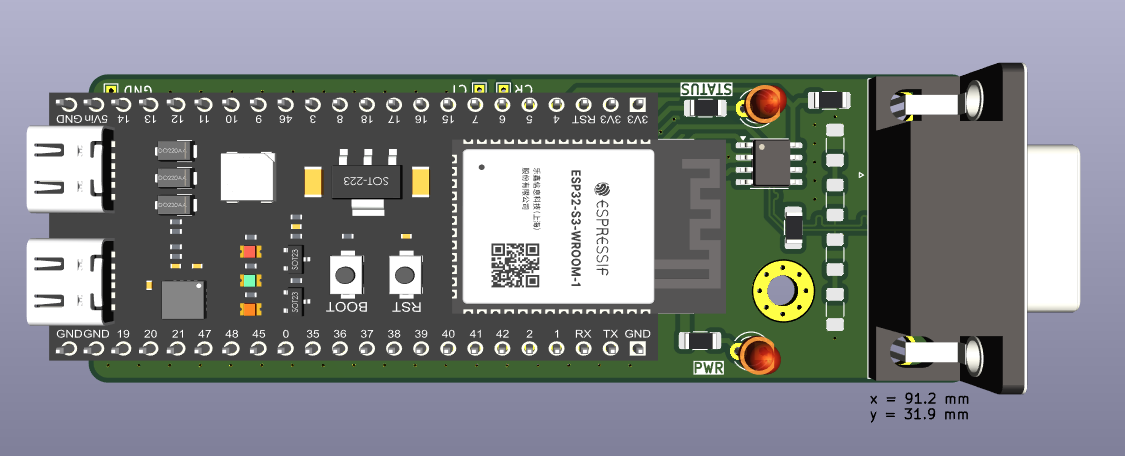

Our hardware uses an ESP32-S3 microcontroller and an MCP2561 CAN transceiver to communicate with the CAN bus. We use the on-board USB-to-UART converter to communicate with the computer.

The firmware is written in C++ using the ESP-IDF framework, and is provided as open-source software in this repository.

The GUI software is written in Python using the Tkinter library and matplotlib for plotting. We use cantools to parse the CAN messages. The GUI software is also provided as open-source software in this repository.

It is expected that the user provides the CAN database file (DBC) to tell our software how to interpret the messages on the CAN bus.

Design considerations

ESP32 Microcontroller

We chose to use an ESP32-S3 microcontroller for the following reasons:

• It is a current model and is not EOL (unlike the more popular ESP32-WROOM32).
• It has a USB-OTG port, which allows for future upgrades, including the possibility of getting higher data rates.
• The availability of Wi-Fi and Bluetooth allows for the possibility of re-building this as a wireless device.

Evaluating other options

• A development board is being used to accelerate prototyping and ensure reliability, instead of soldering the microcontroller module directly onto a PCB.
• A choice needs to be made between the ESP32-WROOM32 and the ESP32-S2 (or ESP32-S3). S2 and S3 are newer and have more features and are not EOL.
• Up till WROOM32, the "CAN" protocol is indeed called "CAN" in the datasheet. However, for S2 and S3, it is called "TWAI" (Two-Wire Automotive Interface). Reasons seem to be legal mostly [source], however it is possible for Espresiff to change specifications in the future since TWAI is not a standard name.
• All three boards have native support for something equivalent to CAN 2.0, with extended frames. None have CAN-FD support.
• All three boards support at least 2 UARTs.

ESP32-S3 DevKitC 1 was chosen. The additional USB-OTG port allows us the possibility of upgrades later down the line.

Datasheets:

• ESP32-WROOM32
• ESP32-S2
• ESP32-S3

CAN Transceiver

Let us first review the status, features, and drawbacks of each transceiver we considered.

Part	Status	Fastest CAN version	Cross-compatible footprint
MCP2551	EOL (end of life)	CAN 2.0 classic CAN	None
MCP2561	EOL (end of life)	CAN 2.0 classic CAN	with MCP2561FD
MCP2561FD	Active	CAN FD	with MCP2561

Most of our testing was done with the MCP2551, which cannot be considered for new designs. We wanted to choose the MCP2561FD, however it is often not in stock. Finally, the MCP2561 is a good compromise, as it is still in stock and can be replaced by the MCP2561FD in the future.

MCP2561 was chosen, with the possibility of upgrading to MCP2561FD in the future.

Datasheets:

• MCP2551
• MCP2561
• MCP2561FD

Migration guide:

• MCP2561FD Migration Guide

Additional considerations

• SELECT already has tested the MCP2551 and a PCB implementation. However, it is EOL and the recommended replacement is the MCP2561FD.
• MCP2551 has 3 modes selectable by the Rs pin (normal, standby, internal slope control), and the MCP2561FD has 2 modes only (normal, standby).
• According to the "migration guide" from Microchip, the MCP2561FD is otherwise a drop-in replacement for the MCP2551.

USB-to-UART Converter

• A choice needs to be made between using UART0 (built-in) or UART1 (external).
• Common choices for USB-to-UART converters: FTDI, CP2102N, CH340.
• If the problem with UART0 is debug output, this can be turned off by pulling GPIO15 to GND during boot and setting the appropriate flags in menuconfig of IDF.

Internal UART0 was chosen for now. This to ensure we can quickly develop the device without introducing additional complications.

Datasheets:

• CP2102N

GUI framework

For real-time plotting, a fast framework like PyQtGraph and PyQt is recommended. However, we chose to use matplotlib and Tkinter for the GUI software. This is because it is easier to use and has a lower learning curve.

We will consider using PyQtGraph and PyQt in the future if we need to increase the sampling rate.

Logging database

We chose to use an SQLite database for logging. This allows us to use the Python standard library to interact with the database. Moreover, the database exists as a file, which means our users do not need to install a database server.

Paper

This work was published in HardwareX, available at DOI 10.1016/j.ohx.2026.e00743.

If you use this in your work, please cite our paper:

@article{can_daq,
  title = {CAN-DAQ: An open-source, cost-effective data capture device and software for automotive research},
  journal = {HardwareX},
  volume = {25},
  pages = {e00743},
  year = {2026},
  issn = {2468-0672},
  doi = {https://doi.org/10.1016/j.ohx.2026.e00743},
  url = {https://www.sciencedirect.com/science/article/pii/S2468067226000039},
  author = {Anuj Verma and Chandram Millon Dutta and Aritra Ghosh and Sakshin M. Kanchibail and Sneha Harish and Rishvanth S.K. and Shaurya Chandra and Siddharth Das and Selvakumar K.},
  keywords = {Automotive, Controller Area Network (CAN), Data acquisition (DAQ), CAN database (DBC), Real-time graphing, Database management},
}
