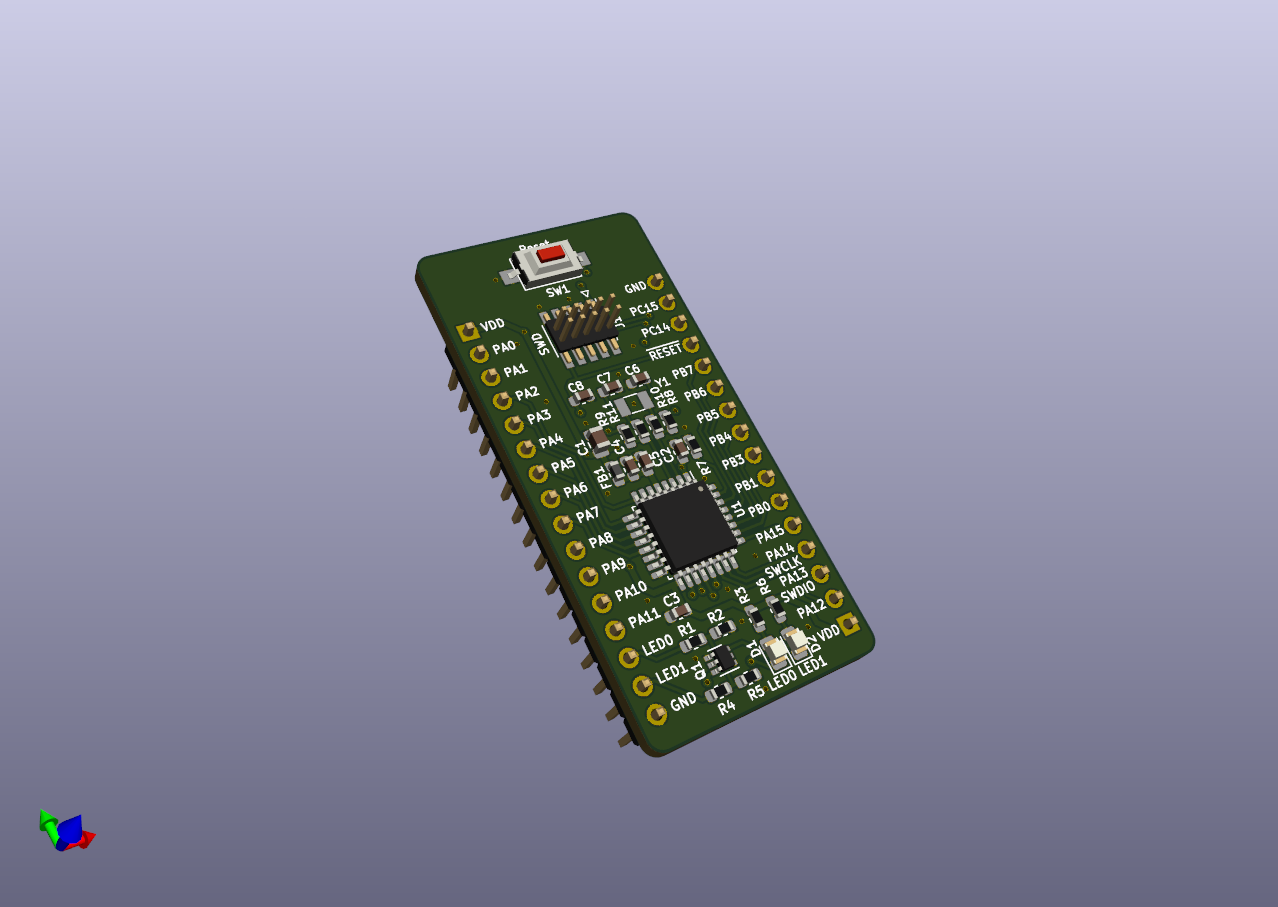

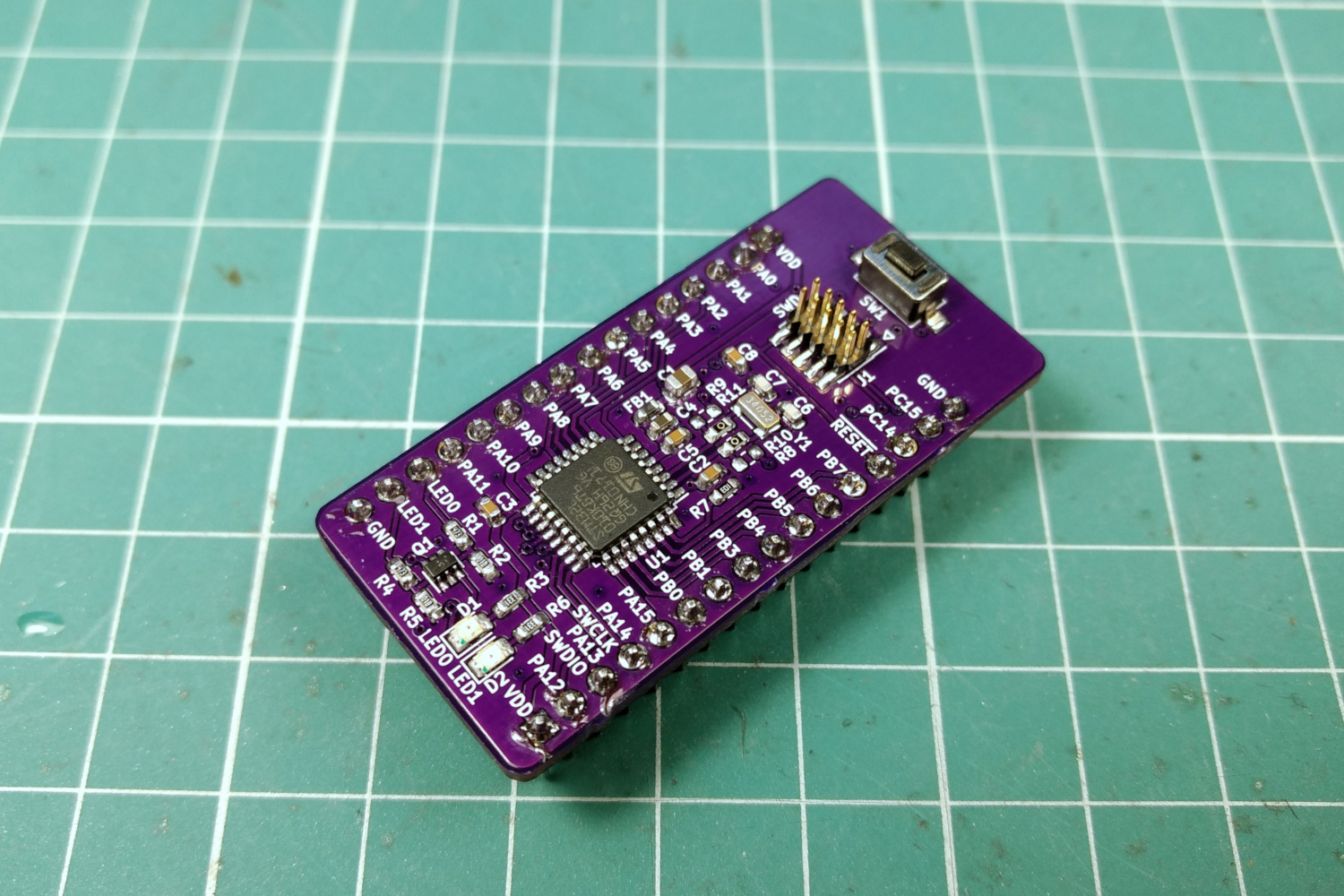

STM32L010 Breakout Board (Rev. B)

Small MCU board designed primarly for the STM32L010K8T6 ARM Cortex-M0+ microcontroller: Datasheet

Can also be used with other pin-compatible STM32 MCUs in LQFP-32 package:

• Most of the STM32L0 family
• STM32L4x2 (ARM Cortex-M4)

Features

• minimal subset of components, no power regulation (important when playing with low power apps)
• optional LSE crystal, if not used its GPIO pins can be connected to the user header by soldering relevant 0R resistors (see schematic)
• two buffered user LEDs, connected to the header - no reserved GPIOs
• reset button
• standard 0.05" pitch SWD programming header, SWD signals also present on the pin headers

Designed in KiCad 5.1.6

Schematic: PDF

License: CC BY-SA 4.0
