4 ATA/ATAPI IDE Interface for Commodore Amiga 1200 and Amiga 600 computers

README

Amiga 4 IDE Hard Parallel ATA Adapter

Created by Gianluca Renzi (C) 2019 E-Mail: [email protected] [email protected]

What is it?

It is a simple but powerful adapter to use internally in any Amiga 1200 or Amiga 600 Computer installed in a tower-like case! It must be connected to the IDE 44-pin interface on the motherboard to drive up to 4 ATA/ATAPI devices like Hard Drives, DVD Rom Drives and compatible drives.

This project follow the same DIY project in Aminet (search 4IDE in docs/hw) or simply check out here:

Aminet 4IDE Readme

Software

Aminet IDE97 Driver

Aminet IDE97 Turbo Driver

Aminet IDE97 Patches

Hardware Point-Of-View

This board has three indipendent activity leds, one for each channel. Moreover the activity leds are merged together in the motherboard so the HDD led nearby the floppy connector can be used as the only activity led.

TODO

May be it can be useful to add a 90-degrees rise connector if the system has some sort of bus board, just to let this board flat as the motherboard.

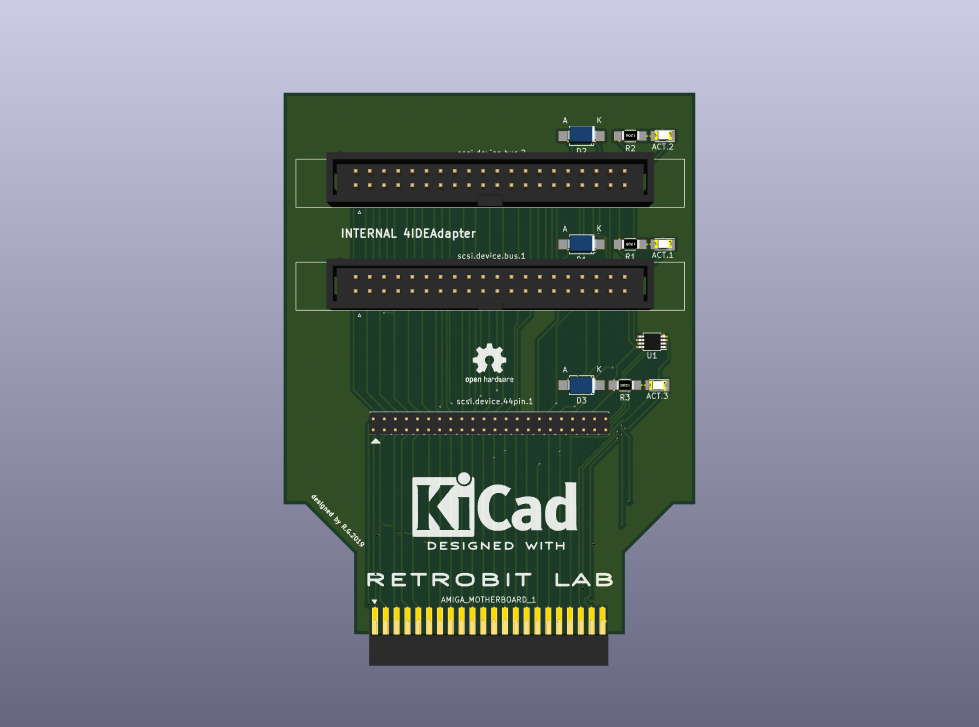

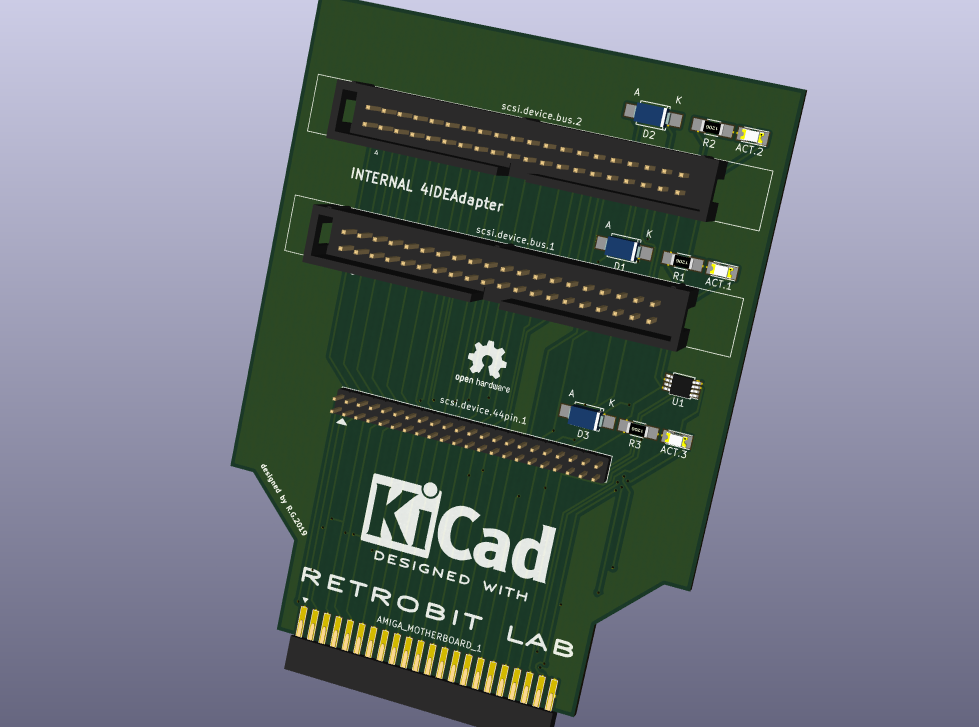

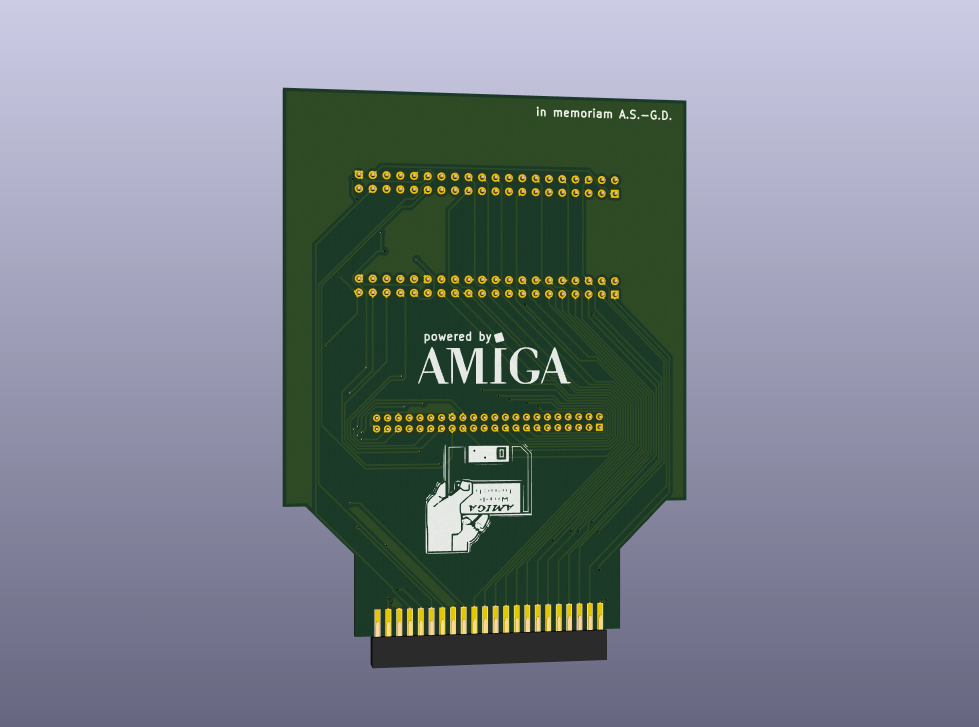

Images
