Description

A simple interface for standard PC Floppy Disk Drive and Amiga Computers

README

Amiga Floppy to PC Floppy Adapter

Created by Gianluca Renzi (C) 2018 E-Mail:

• [email protected]
• [email protected]

PCB Revision History

• V0.1 Initial Revision 2018 Made with Kicad 4.x
• V1.0 First (BAD) PCB revision from transition from Kicad 4.x to Kicad 5.x
• V2.0 PCB Revision entirely made on Kicad 5. No library from Kicad 4 anymore.

What is it?

It is a simple but powerful adapter to use internally in any Amiga Computer! It must be connected to the floppy disk drive 34-pin interface on the drive itself, then hooked up with the original cables from Amiga motherboard.

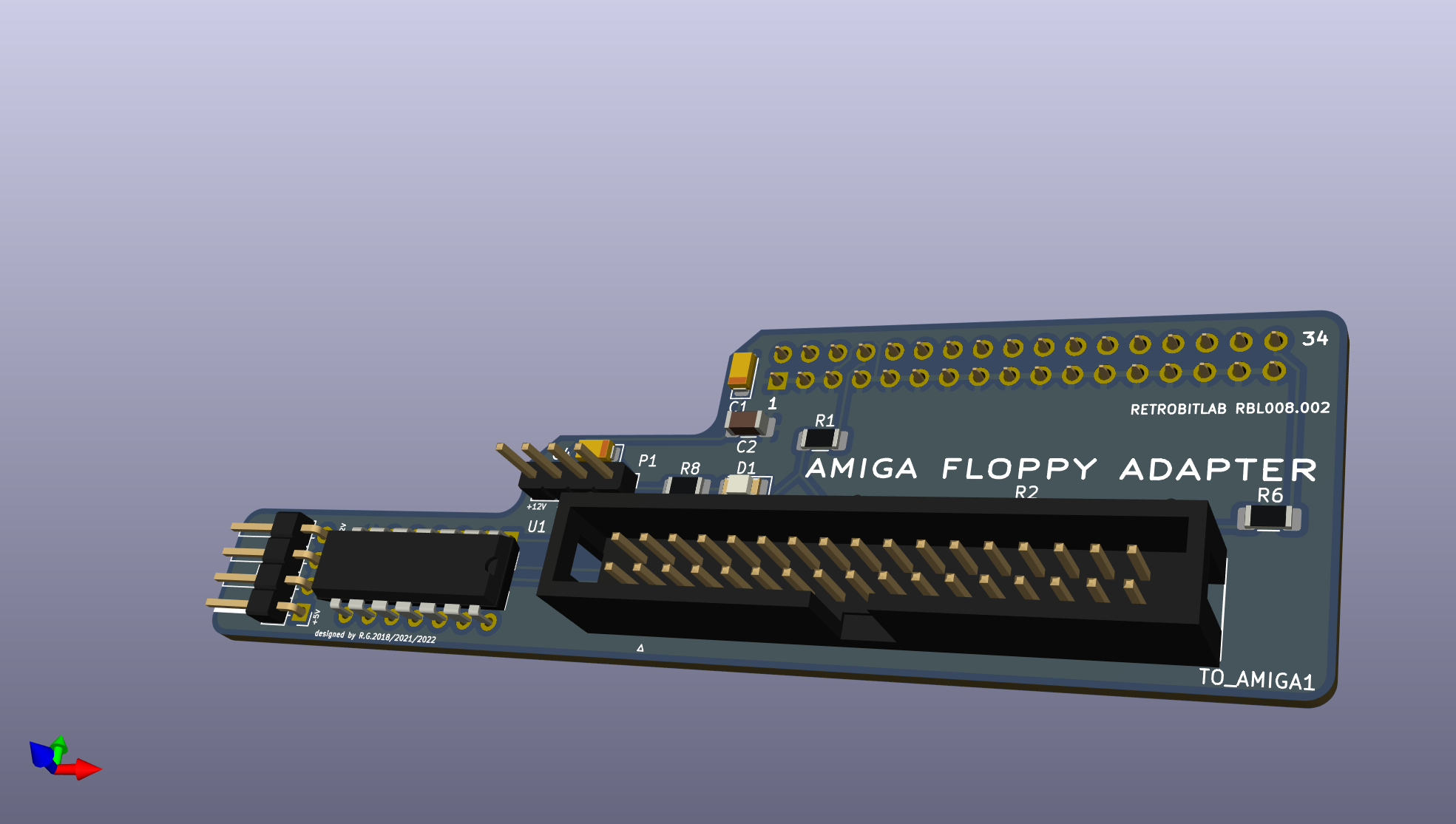

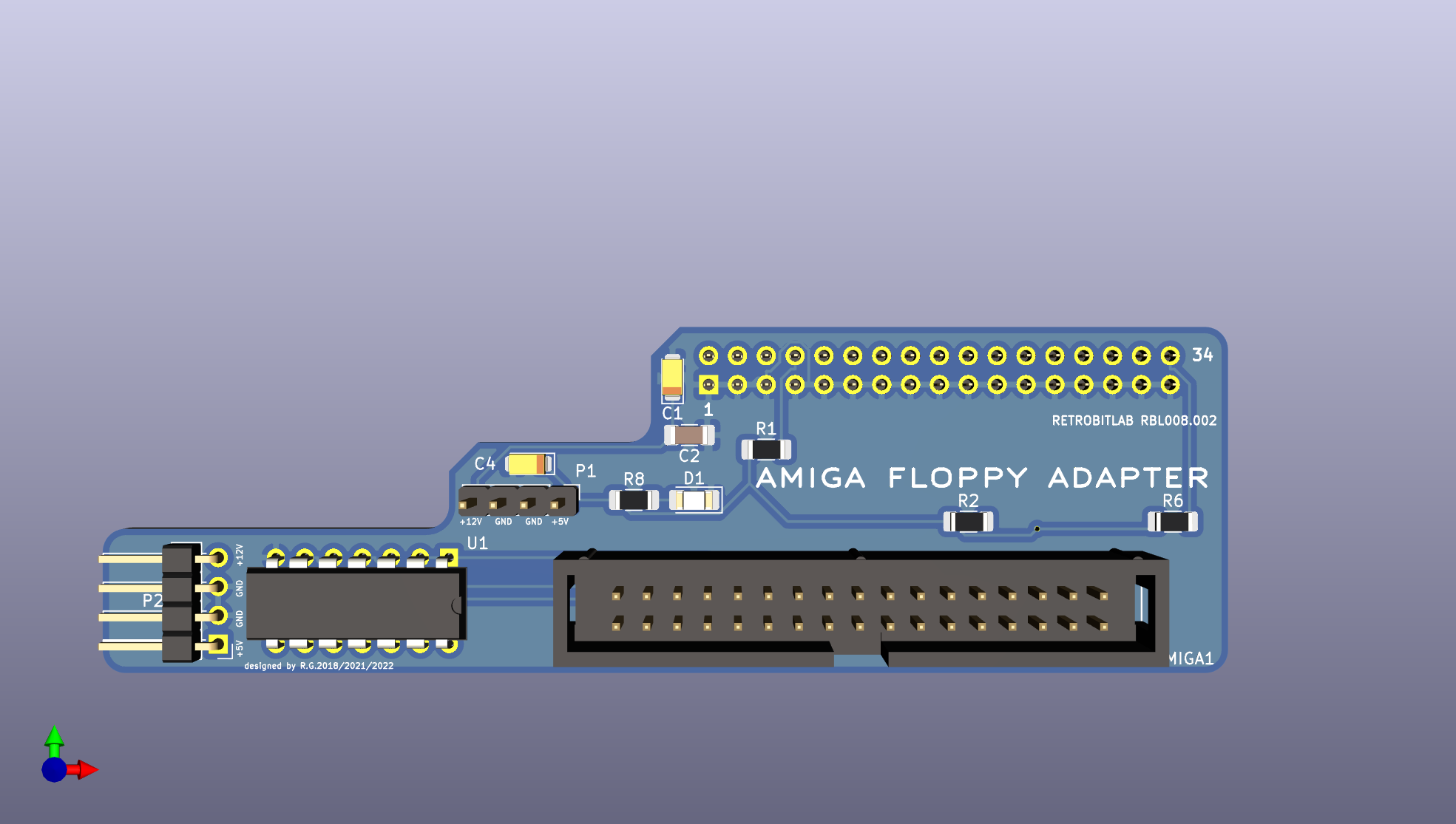

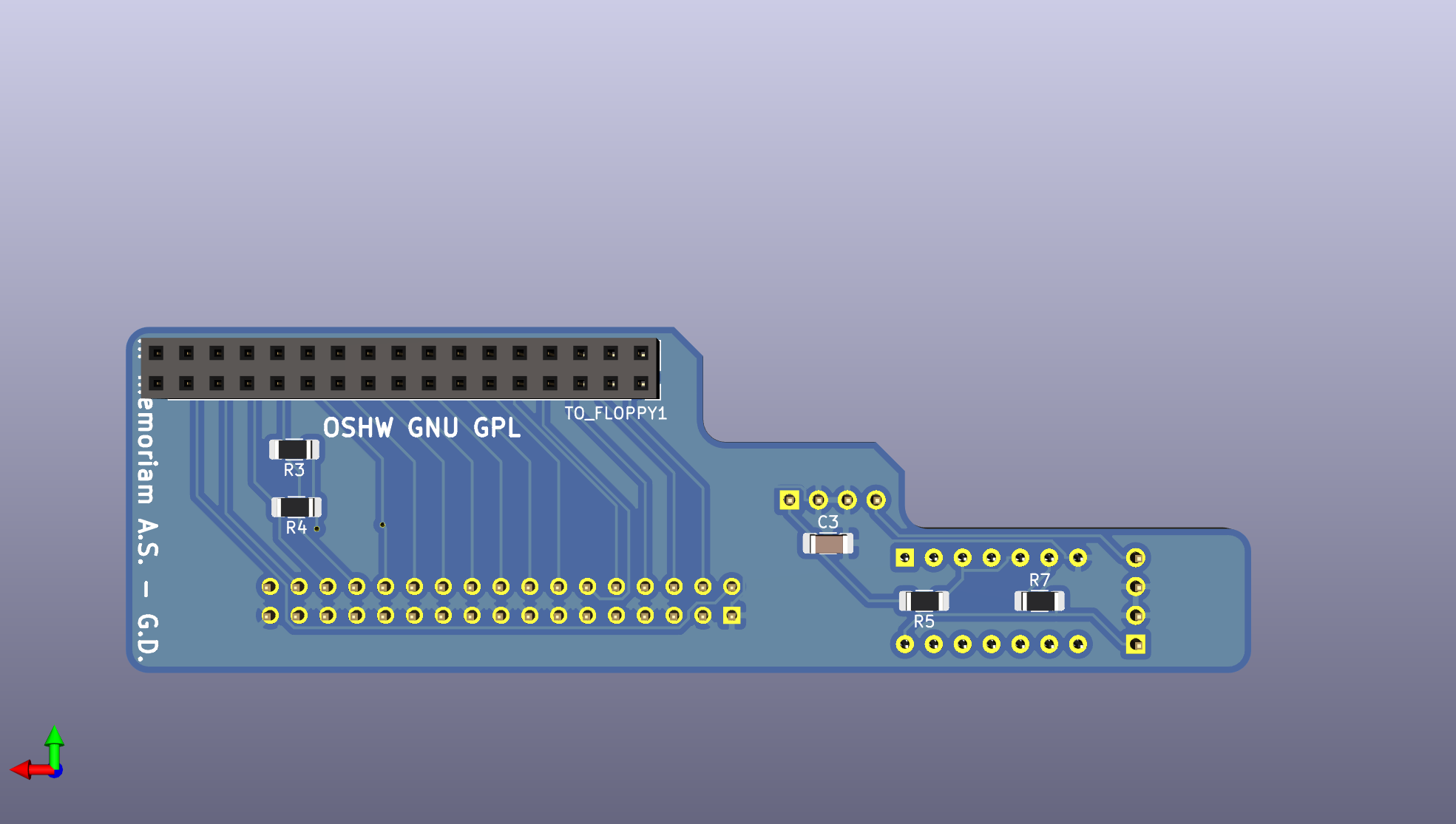

Images

What's changed?

• V0.1 Initial release (2018)
• V1.0 From Kicad 4 to Kicad 5 (2019). I found a bug in PCB version automatically generated by Kicad 5 from Kicad 4: All the hand soldering pads are way too large and they are overlapping each other short-circuiting every signal with a large series of resistors. Thanks to: Stefan Gammelgaard(BM) to point me out on this issue.
• V2.0 Updated and Corrected for usage in Kicad 5 (2020)

Bill of materials (from Digikey)

Quantity	Digikey's Part No.	Manufacturer's Part. No.	Description	PCB/Schematic's Reference
2	445-10000-1-ND	CGA5H2X8R2A104K115AD	CAP CER 0.1UF 100V 1206 EPOXY	C2, C3
10	P2.2KECT-ND	ERJ-8GEYJ222V	RES SMD 2.2K OHM 5% 1/4W 1206	R1, R2, R3, R4, R5, R6, R7
1	754-APTR3216SECK/J3-PRVCT-ND	APTR3216SECK/J3-PRV	LED SMD	D1
1	WM4002-ND	0022032041	CONN HEADER VERT 4POS 2.54MM	P1
1	609-3407-ND	68016-404HLF	CONN HEADER R/A 4POS 2.54MM	P2
1	541-CRCW1206330RJNEACCT-ND	CRCW1206330RJNEAC	RES 330 OHM 5% 1/4W 1206	R8
1	S9174-ND	SBH11-PBPC-D17-ST-BK	CONN HEADER VERT 34POS 2.54MM	TO_AMIGA1
1	ED3068-ND	SH2-34G-PT	CONN RCPT 34POS 0.1 GOLD PCB	TO_FLOPPY1
1	296-1664-5-ND	SN74LS38N	IC GATE NAND 4CH 2-INP 14DIP	U1
2	478-10757-1-ND	TPSA106K016R1000	CAP TANT 10UF 10% 16V 1206	C1, C4
