GSM board based on SIM800L for UEXT connector

Features

  • Separate power supply from 12V or 5V (GSM board needs 4.2V and 2A)
  • Reverse polarity protection for separate power supply
  • UEXT connector to communicate with host MCU

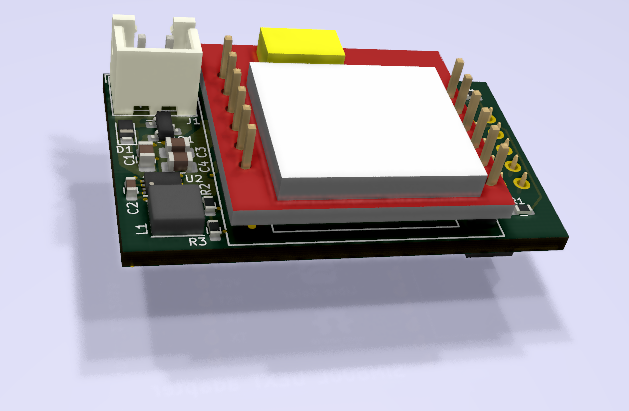

Top side

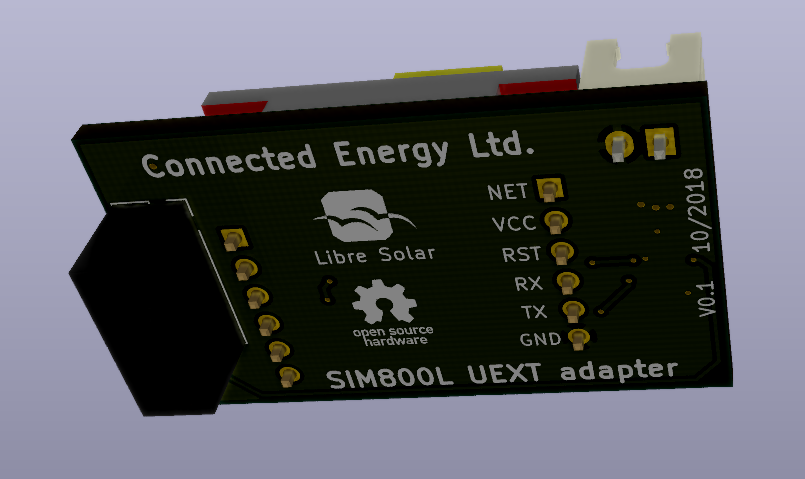

Bottom side
