ottercastamp

Imported from GitHub: Ottercast/OtterCastAmp · commit 0b5f7f9 · license MIT

Description

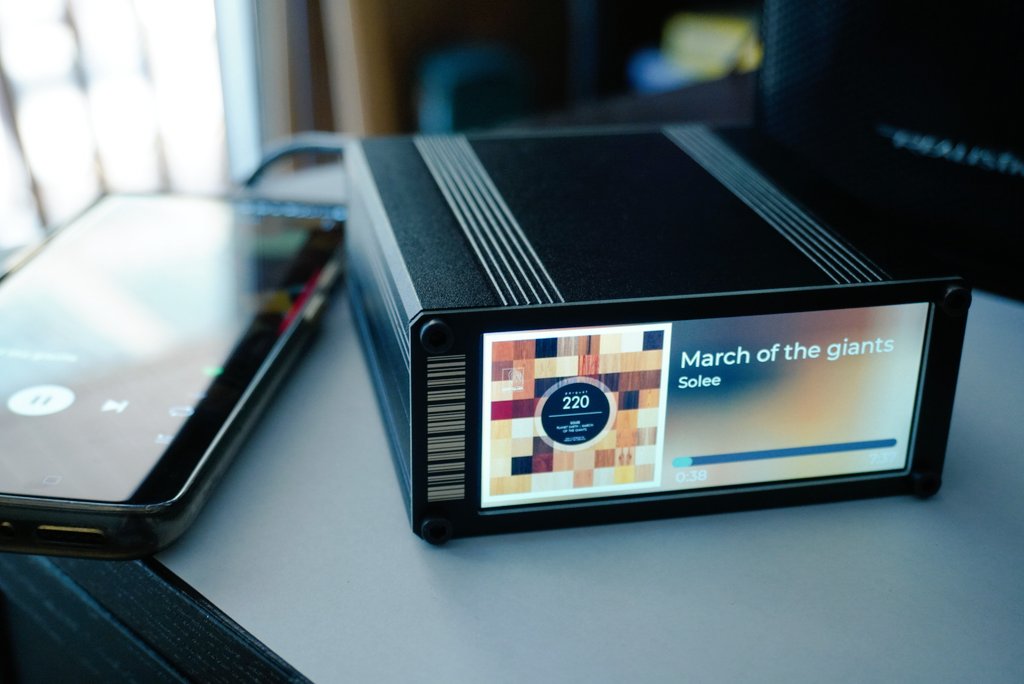

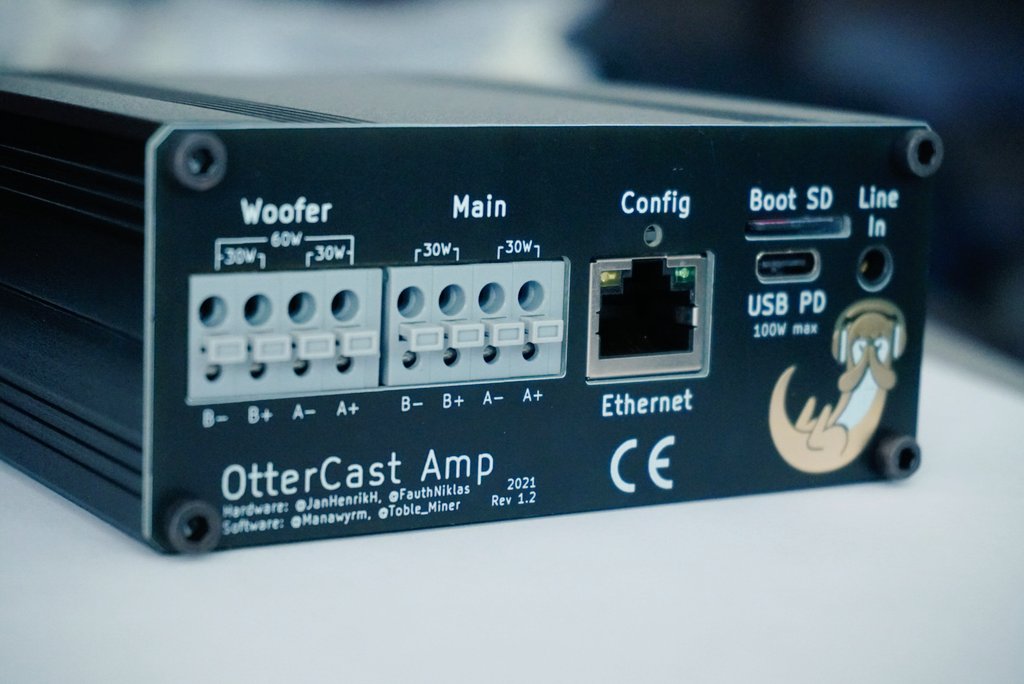

OtterCastAmp is an open-source WiFi Speaker amplifier, based on a Sochip S3 SoC. Powered by any USB PD adapter for up to 100W of music.

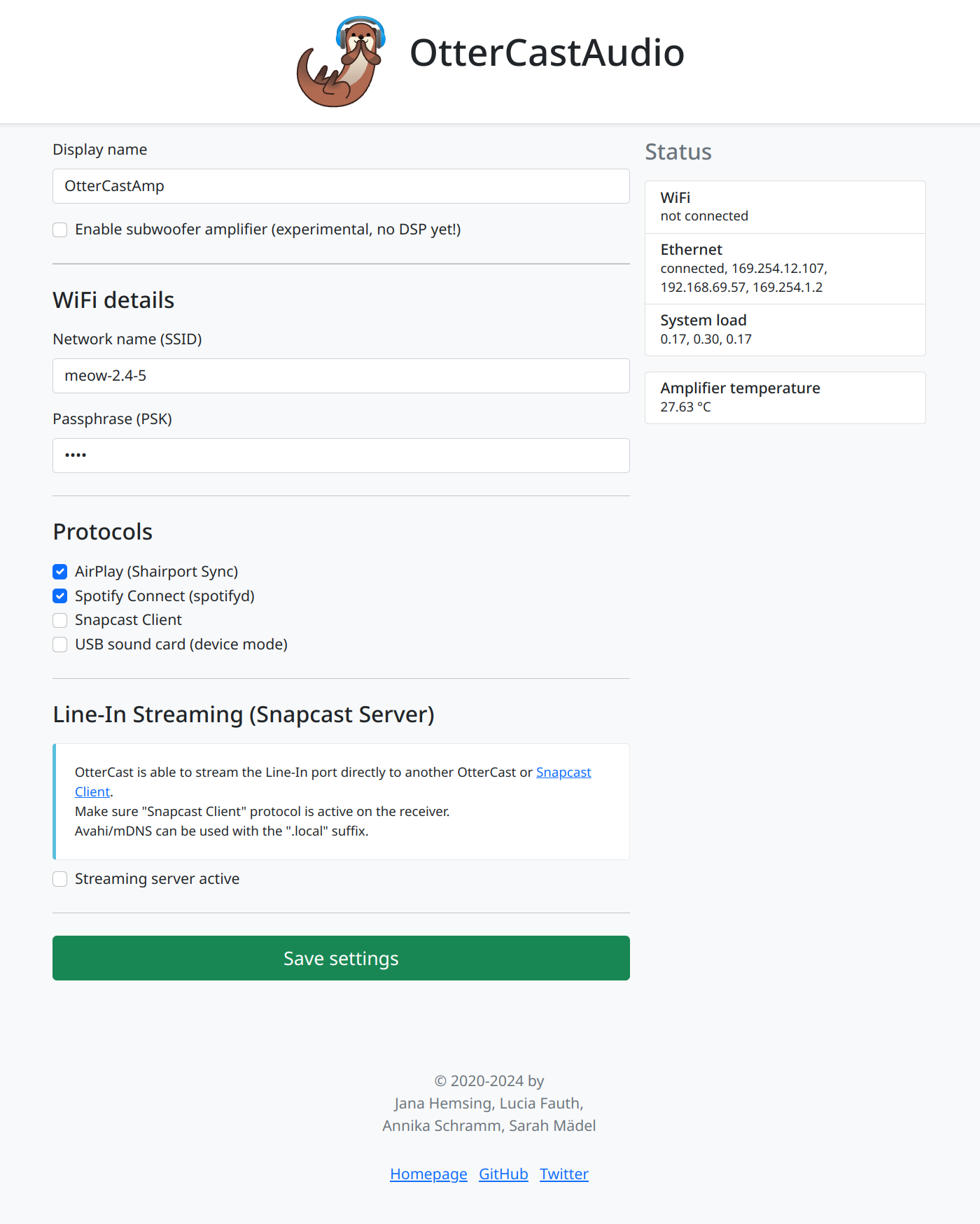

README

Build Instructions

Step 1: Get preassembled PCBs from JLCPCB

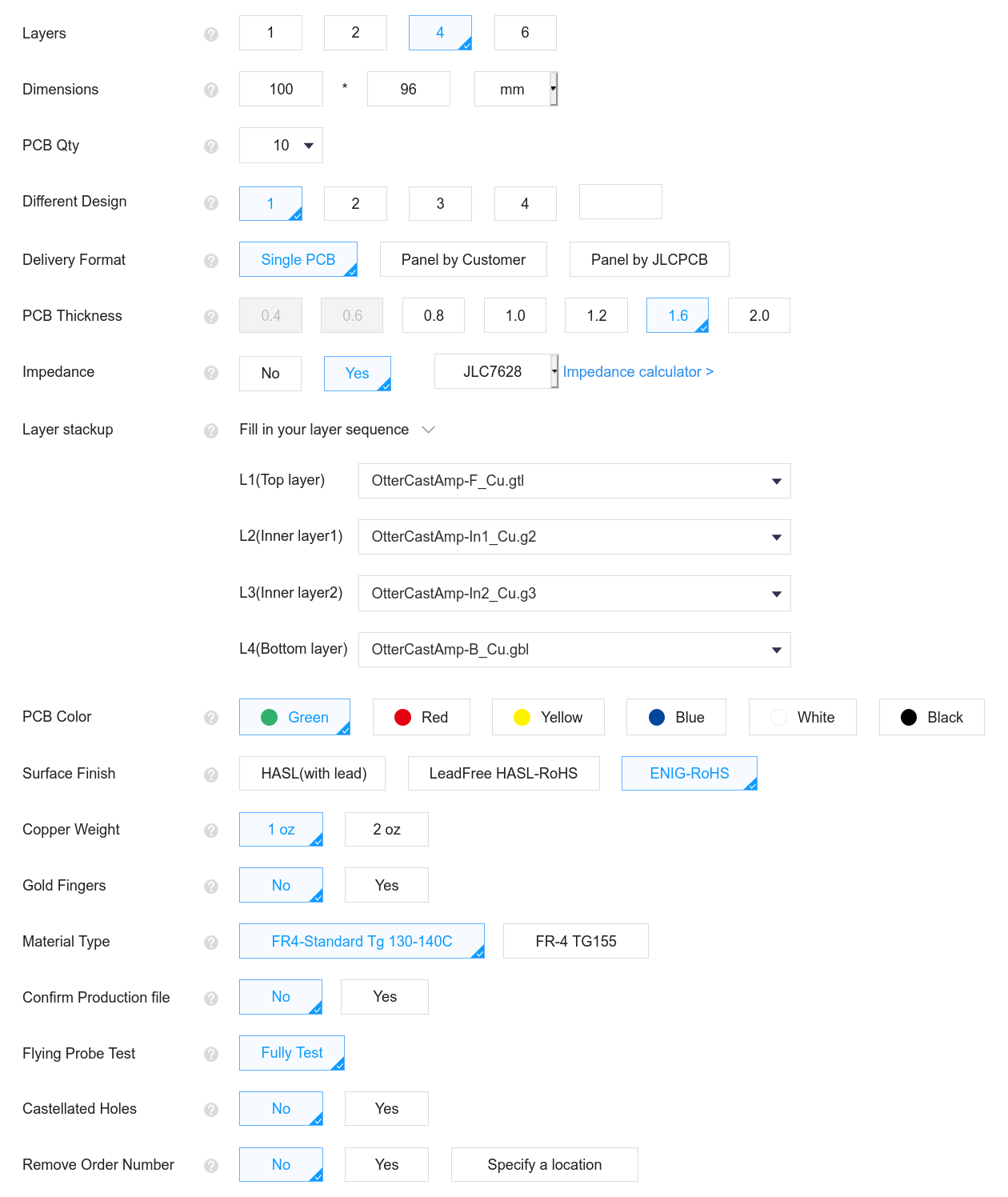

There are ready-to-order gerber files in this repo. Make sure to choose these settings when ordering the PCBs.

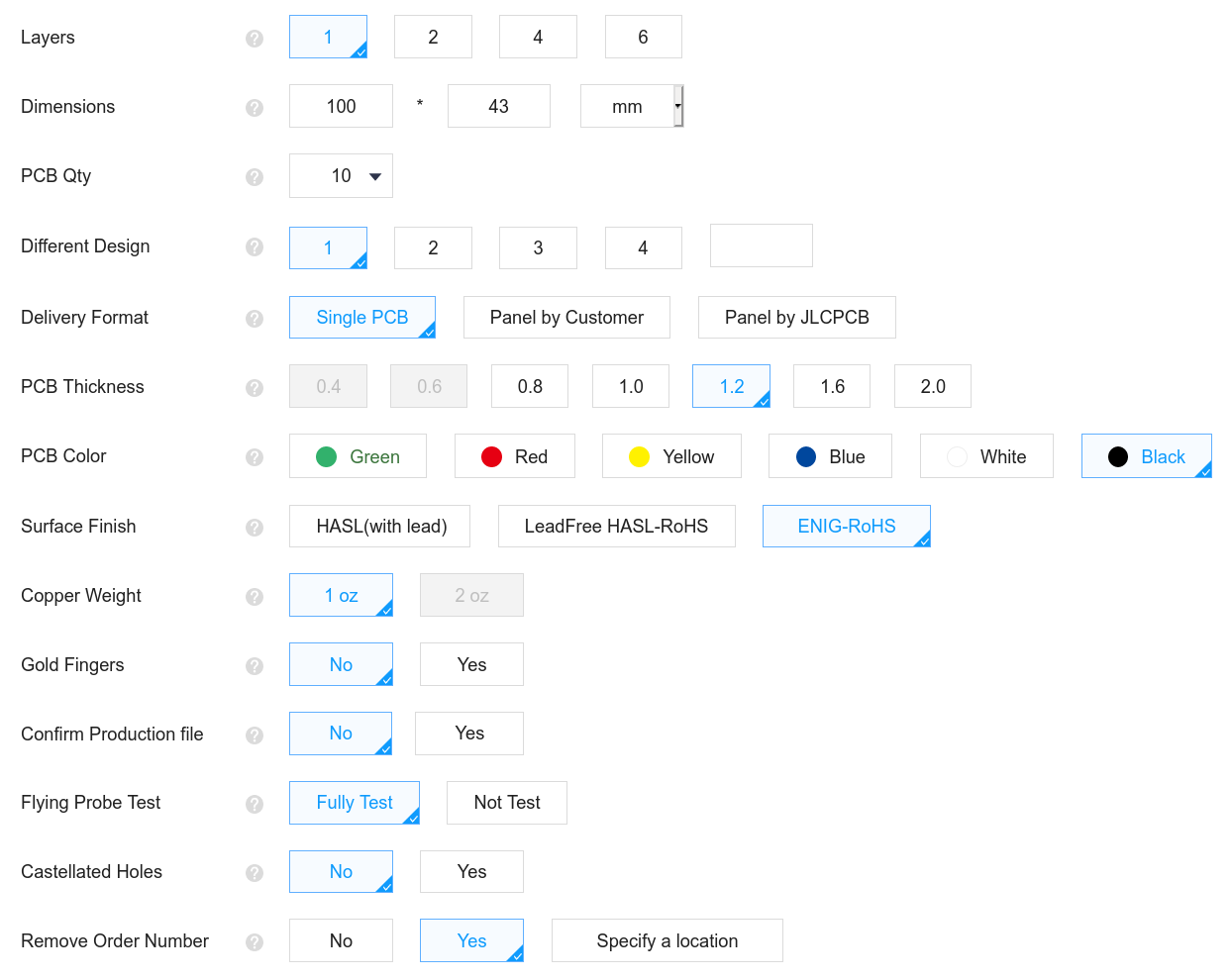

For the front and back PCB, use these settings:

You can use JLCPCB's assembly service to get most parts assembled. With the current supplychain situation, not all parts are available. Some parts can not be assembled by JLCPCB and have to be soldered on manually.

The price for 10pcs assembled PCBs is $30 in PCBs and $200 in parts.

Step 2: Buy additional parts

You will need: LCD KD35WVFPD107
https://aliexpress.com/item/4001112368958.html

Allwinner S3
https://aliexpress.com/item/4001284135834.html

AP6255
https://aliexpress.com/item/4000302317437.html

Case (comes in black if you contact the seller)
https://aliexpress.com/item/32591351153.html

A bunch of LCSC parts
C475204, C424654, C12074, C91145, C388883, C381134, C454912

Mouser / DigiKey
STUSB4500QTR, TAS5825M

Misc
12x20x50mm Aluminium Block M3x8 Screws

Step 3: Assemble OtterCastAmp

Video tutorial follows soon...
