Zynq SoM Board

Overview

This repository contains the hardware design files for a System on Module based on Xilinx Zynq 7020 SoC (FPGA + Dual Core ARM Cortex A9).

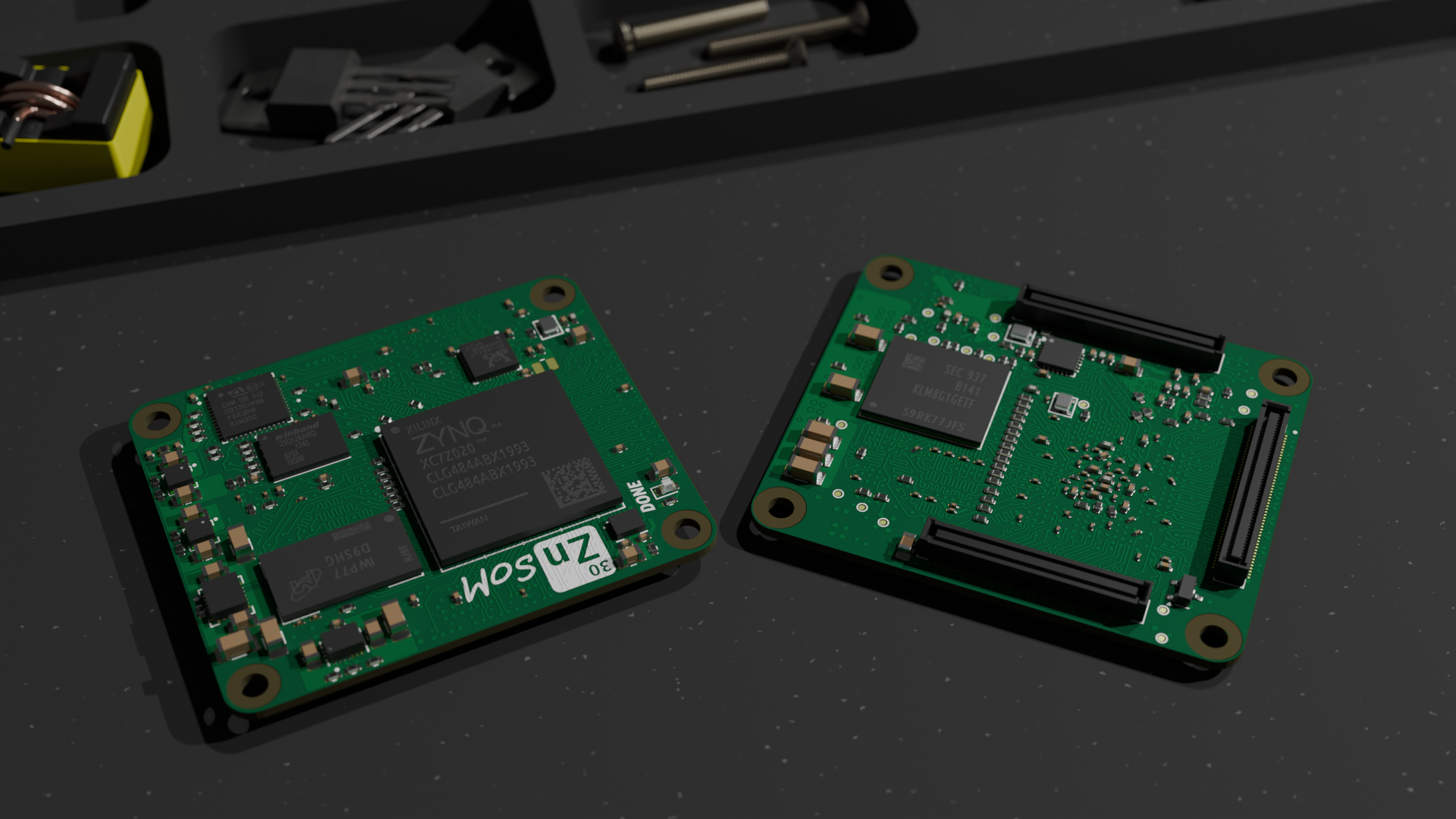

Description

[!Warning] First prototype is under testing. The design has not been fully verified.

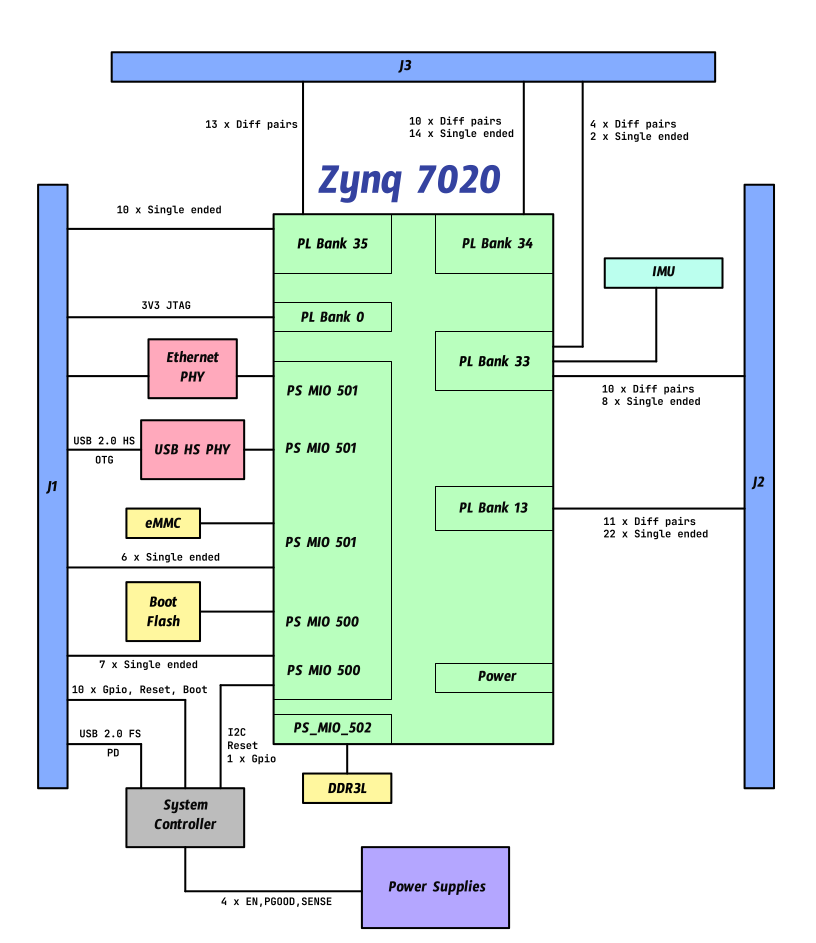

Block Diagram

Features

Memory

• 512Mb DDR3L RAM
• 8Gb eMMC
• 16Mb Boot Flash

Connectivity

• 1x Ethernet Gigabit

• 1x USB 2.0 High Speed OTG

• 1x USB 2.0 Full speed + USB PD (STM32)

• 7x Zynq PS GPIO (3.3V)

• 6x Zynq PS GPIO (1.8V) (External SD Card)

• 48x Zynq PL differential pairs (1.2-3.3V)

• 56x Zynq PL single ended IO (1.2-3.3V)

• 8x STM32 GPIO (3.3V)

Debug

• Zynq JTAG (3.3V)
• STM32 SWD (3.3V)

Folder Structure

The repository is structured as follows:

• schematics contains the Kicad schematic sheets and schematic pdf
• scripts contains a collection of python scripts used during the SoM/Carrier design phase
• manufacturing/assembly containts the BOM and pick-and-place position files
• manufacturing/fabrication containts the Gerber files and fabrication pdf
• lib contains footprints and 3d models

Production

JLCPCB ordering information:

• Layers: 8
• PCB Thickness: 1.2 mm
• Material Type: FR-4 TG155
• Stackup: JLC08121H-1080A
• Outer Copper Weigth: 1 oz
• Inner Copper Weigth: 0.5 oz
• Minimum via diameter/hole-size: 0.3/0.2 mm
• Via Covering: Epoxy Filled and Capped
• Surface finish: ENIG
