Description

Breadboard friendly, USB Type C enabled, ESP32 Devkit compatible, JLCPCB assembly ready ESP32 devboard

README

ESP32 Devkit Type C

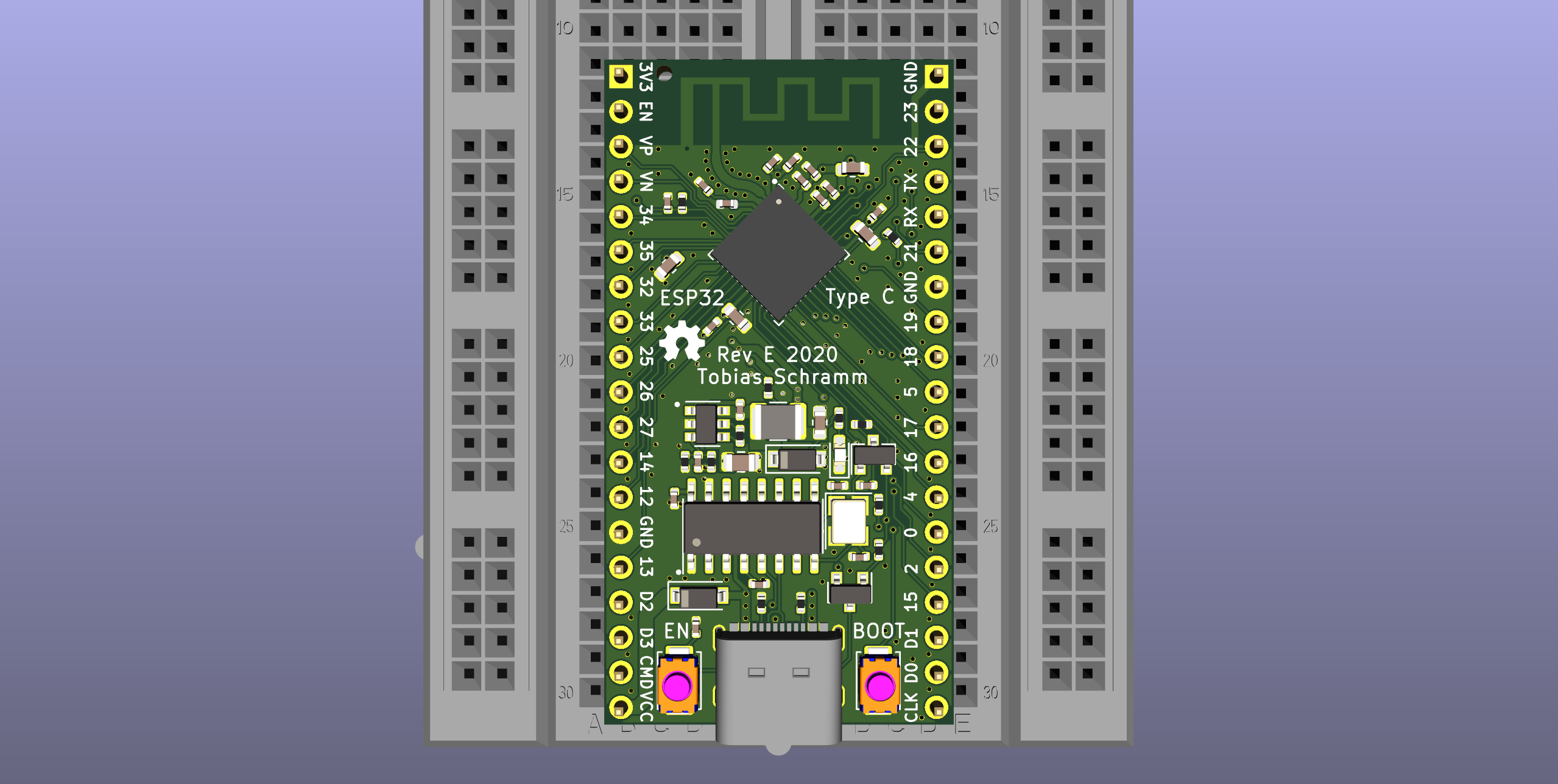

This PCB is a USB Type C enabled ESP32 development board. It is pin-compatible with the ESP32 Devkit C but sports a slightly decreased width to fit on a standard breadboard.
The current revision (Rev E) has been tested and confirmed to work fine.

Features

• USB Type C
• pin-compatible with ESP32 Devkit
• fits on standard breadboard
• onboard antenna
• jumper to short USB protection diode

Furthermore this board is optimized for JLCPCB assembly, a Chinese SMT PCB assembly service. All components on this board, except the USB Type C connector, the push buttons and the pin headers can be assembled by them for around ~$8 including PCB manufacturing and components.

Assembly

There is an interactive HTML BOM to help you assemble the board.

Assuming you are using JLCPCB SMT assembly you will need to populate just the following parts by hand:

Reference	Description	LCSC
J1	USB Type C connector	C167321
SW1, SW2	RESET/BOOT push button	C115357
J2, J3	Pin headers	C2337
