Description

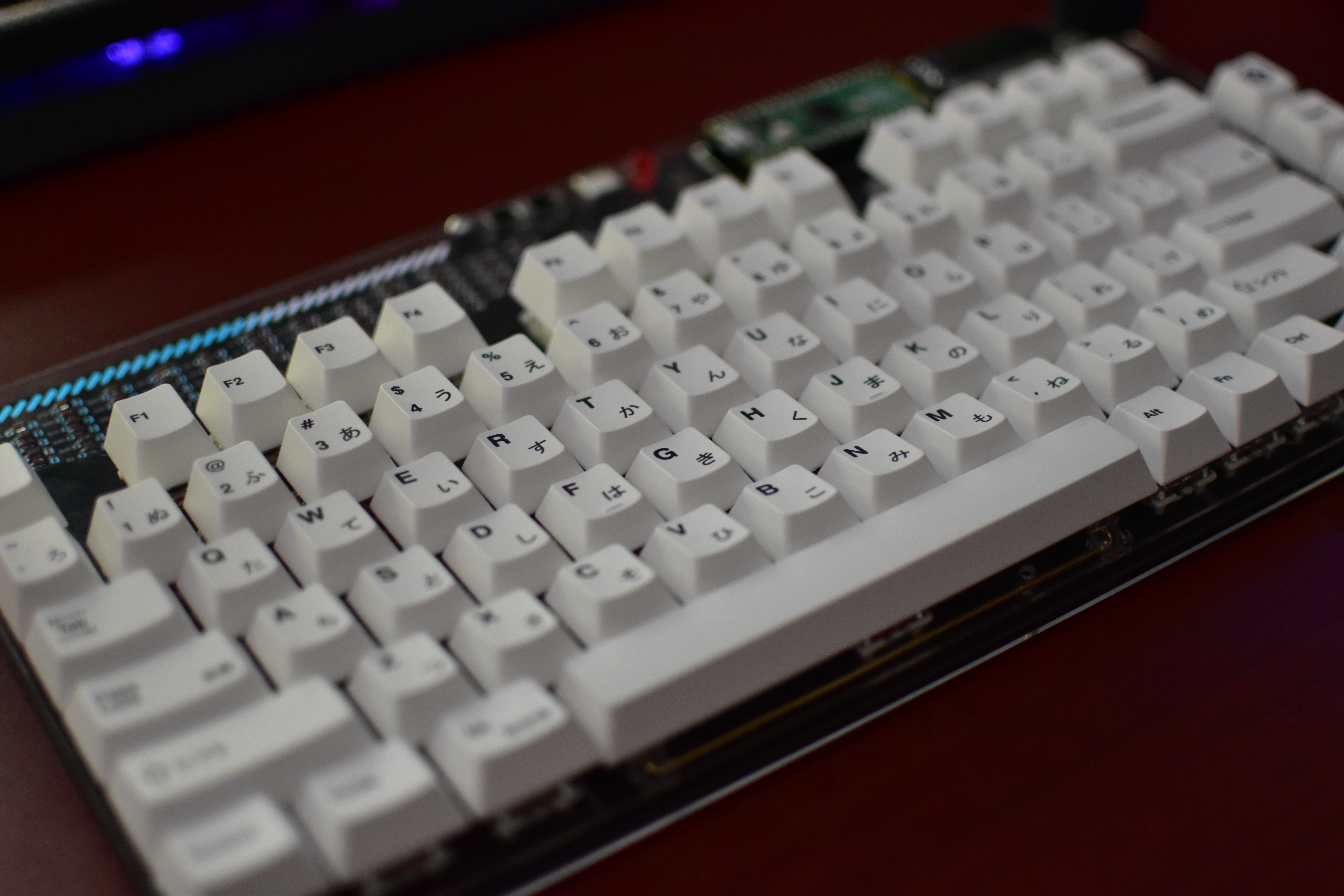

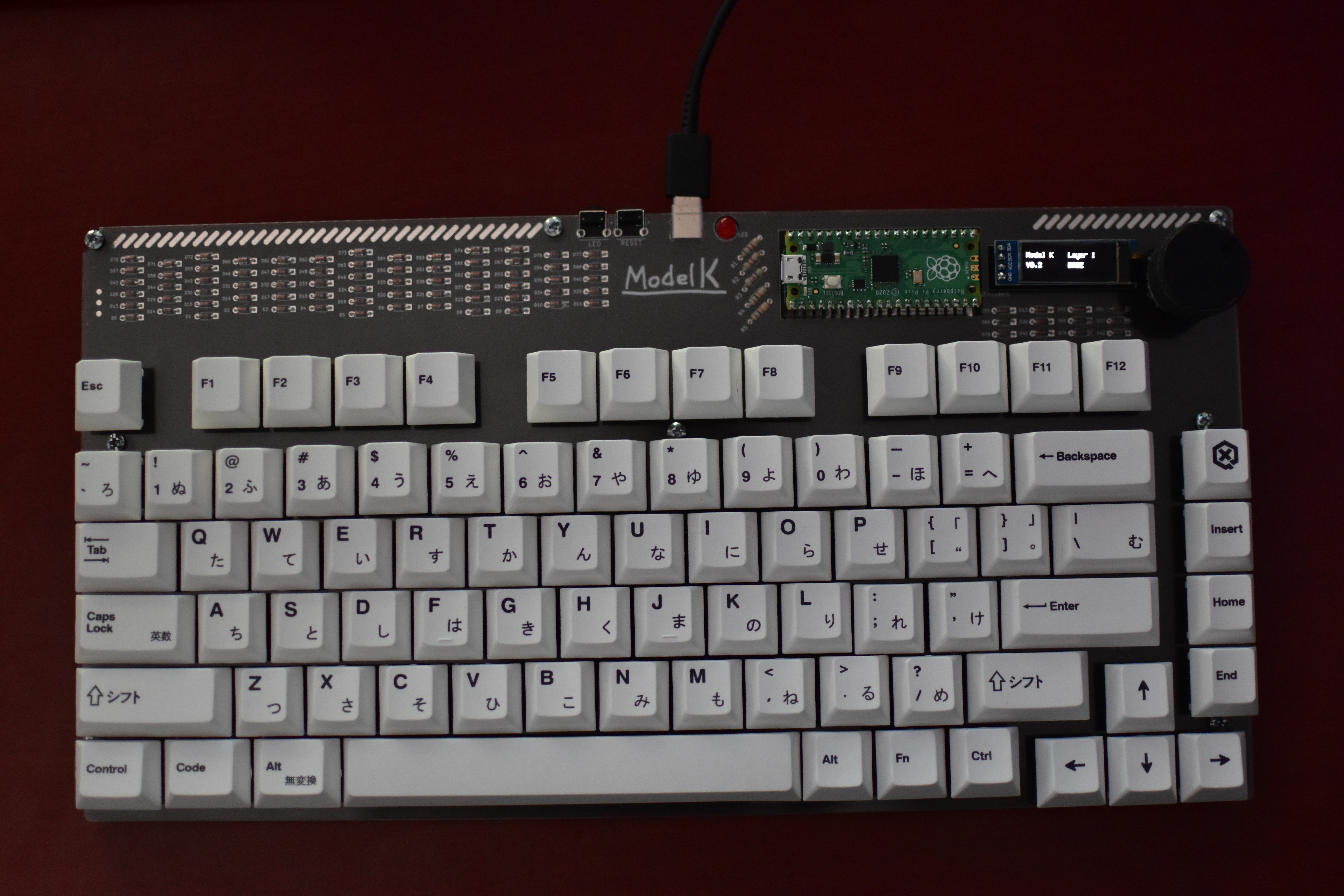

A 75% Keyboard based on the Raspberry Pi Pico (RP2040) and custom hardware

README

Model-B

A 75% keyboard based on the RP2040.

• Keyboard Maintainer: Brian Hill
• Hardware Supported: GitHub

Revisions

At the current moment there is only one variant of the Model-B, the rev-0 (aka the prototype board). Any others are clones and may not have the exact firmware requirements.

Building and Flashing

Make example for this keyboard (after setting up your build environment):

make trojan_pinata/model-b/rev0:default

Flashing example for this keyboard:

make trojan_pinata/model-b/rev0:default:flash

Compile example:

qmk compile -kb trojan_pinata/model_b/rev0 -km default

See the build environment setup and the make instructions for more information. Brand new to QMK? Start with our Complete Newbs Guide.

Bootloader

Enter the bootloader in 3 ways:

• Bootmagic reset: Hold down the top left key and plug in the keyboard. This will also clear the emulated EEPROM, so it is a good first step if the keyboard is misbehaving.
• Physical reset button: Hold down the BOOTSEL button on the Pi Pico, then either plug the board in or press the RESET button.
• Keycode in layout: Press the key mapped to QK_BOOT. In the pre-supplied keymaps it is on the second layer, replacing the Esc key.

After entering the bootloader through one of the three methods above, the keyboard will appear as a USB mass storage device named RPI-RP2. If the CLI is unable to find this device, the compiled .uf2 file can be manually copied to it. The keyboard will reboot on completion with the new firmware loaded.
