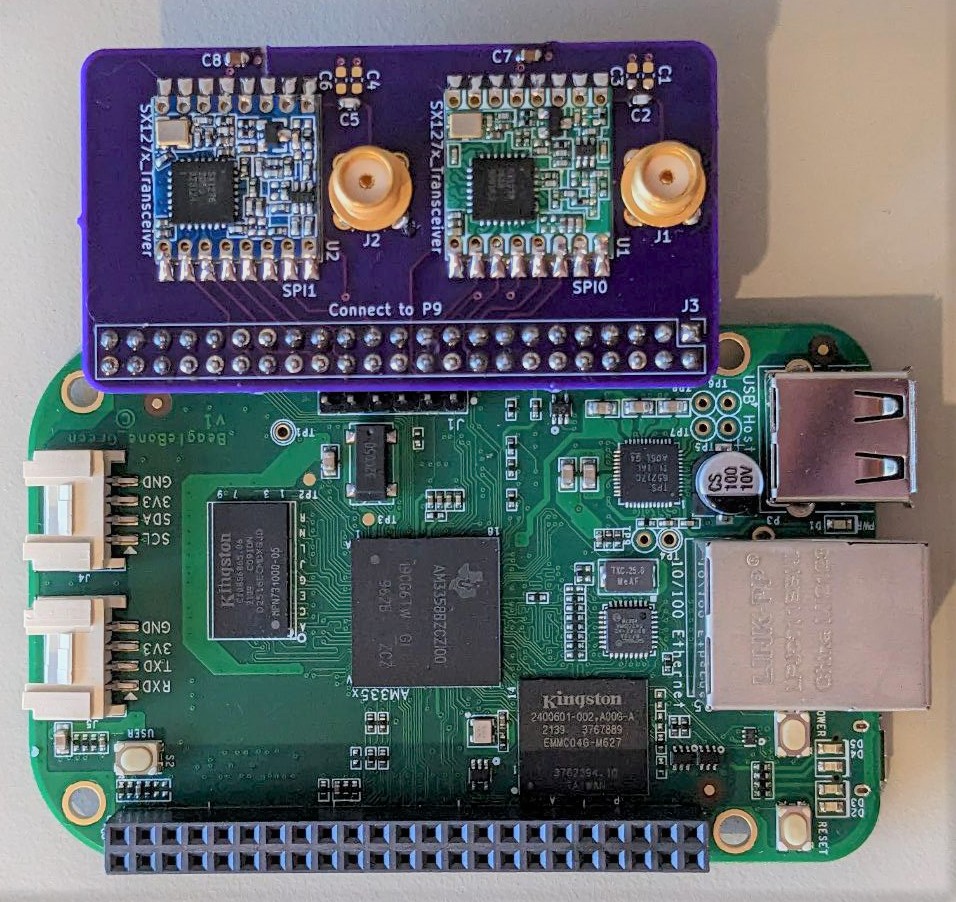

Dual LoRa module adapter for BeagleBone

This PCBA connects widely available LoRa modules based on Semtech SX127x RFIC, such as this module (archive) sold on Aliexpress for less than $3, to the Texas Instruments BeagleBone family of single board computers.

Requirements

The module must have a size of 16 by 16 mm, and have 16 castellated pads with 2 mm spacing; for details, see the Kicad footprint. The module pinout must match the following, viewed from the top:

Pin 1?
ANTGND
GNDDIO5
DIO3nRESET
DIO4nCS
3V3SCK
DIO0MOSI
DIO1MISO
DIO2GND

These modules do not have a clearly marked pin 1, so the actual pinout may be rotated 180° compared to the above.

See also the bill of materials.

Usage

BeagleBone pinout

The following table lists the BeagleBone pins and their connections:

Radio#FunctionBB pinCPU pin
radio0nRESETP9_15gpio1[16]
radio0IRQP9_16gpio1[19]
radio0nCSP9_17gpio0[5]
radio0SCKP9_22gpio0[2]
radio0MOSIP9_18gpio0[4]
radio0MISOP9_21gpio0[3]
radio1nRESETP9_25gpio3[21]
radio1IRQP9_27gpio3[19]
radio1nCSP9_28gpio3[17]
radio1SCKP9_31gpio3[14]
radio1MOSIP9_30gpio3[16]
radio1MISOP9_29gpio3[15]

Radio 0 is connected to CS0 of SPI0, radio 1 is connected to CS0 of SPI1.

BeagleBone pin mux configuration

To configure BeagleBone pins, run the following commands:

sudo modprobe spidev
sudo chown $USER /dev/spidev*

config-pin P9_15 gpio_pu
config-pin P9_16 gpio_pu
config-pin P9_17 spi_cs
config-pin P9_22 spi_sclk
config-pin P9_18 spi
config-pin P9_21 spi

config-pin P9_25 gpio_pu
config-pin P9_27 gpio_pu
config-pin P9_28 spi_cs
config-pin P9_31 spi_sclk
config-pin P9_30 spi
config-pin P9_29 spi

These commands were tested on Debian 12 (bookworm).

Basic functional test

To perform a basic test of module functionality, install spi-tools and run the following commands:

echo '0: 4200' | xxd -r | spi-pipe -b 2 -d /dev/spidev0.0 | xxd
echo '0: 4200' | xxd -r | spi-pipe -b 2 -d /dev/spidev1.0 | xxd

Both commands should return the following output:

00000000: 0012                                     ..

The number 12 is the module ASIC revision.

Full functional test

Steps for performing a full test of module functionality, including radio transmission and reception, will be provided later.

Revision history

A1 : Initial revision

Terms of distribution

The adapter is covered by the CERN-OHL-P (permissive) license. See LICENSE.txt for details.
